Enter store- Description
Description:
This filter is installed between the irrigation valve and drip regulator to protect drip emitters from rust, sand and other impurities that may clog them
Useful Y-filter controls debris
Heavy duty plastic with maximum UV & oxidizer protection
easily removed for cleaning by unscrewing the threaded cap
Need to use the filter Irrigation method:
Sprinkler irrigation: field, lawn
Micro-sprinkler irrigation: economic crop, fruit trees, vegetable
Drip irrigation: greenhouse, economic crop, fruit trees

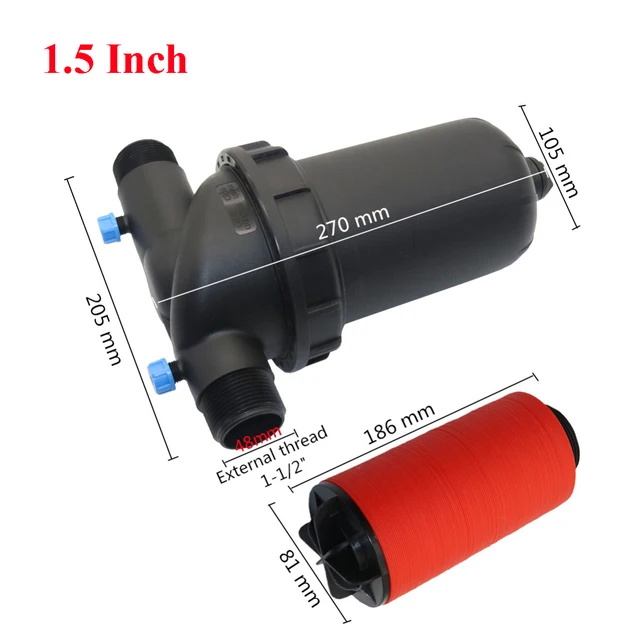

Specification:
Name: Disc ater filter
Material: plastic
Color: lack
Type 1 Connection : 1.25" Male thread (1-1/4\\\\\\\'\\\\\\\')
Type 1 Flow: 14 m³/ h
Type 2 Connection : 1.5"Male thread (1-1/2\\\\\\\'\\\\\\\')
Type 2 Flow: 15 m³/ h
Type 3 Connection : 2\\\\\\\'\\\\\\\' Male thread
Type 3 Flow: 25m³/ h
Working pressure: 1~8 bar
Package included:
1 x Disc water filter
Working principle：
The filter core is shaped by many plastic discs stacked together.
The plastic discs are with grooves on the surface, discs surface with a radially reduced groove, when the upper and lower discs stacked, the formation of a number of small cross-flow channel.
When water flow into the channel, large impurities in the water are filtered at the various channels, which is discs surface.
The depth and number of grooves on the disc determines the size of the filtered impurities.
This product filters impurities about 120 mesh.
Product Features:
1.Made of engineering plastic, high mechanical properties, strong corrosion resistance and abrasion resistance.
2. Apply to kinds of water, accuracy filtration, filter sand and mud effectively.
3.Pressure loss is small, normal pressure loss is 0.1-0.5 bar
4.The injection molded parts are easy to replace and match, are stable and easy to maintain. Almost no need routine maintenance, no need professional tools
5.Long service life, easy to clear, install, take apart, transport
6.Easy to backwashing, high efficiency, water consumption rate no more than 0.5%
