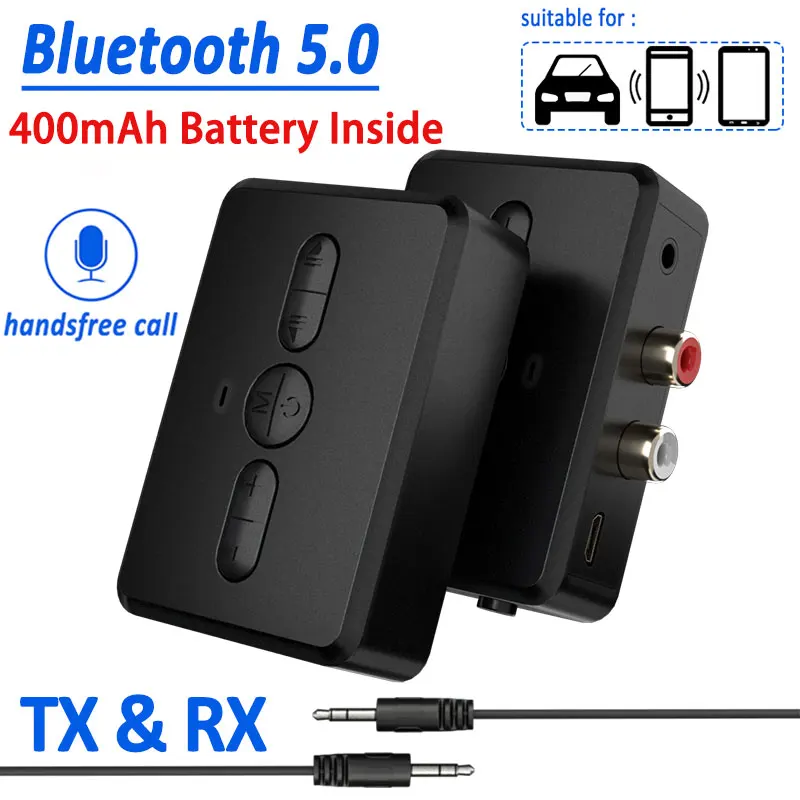

5.0 Audio Receiver Transmitter RCA 3.5mm AUX Jack Music 400mah Stereo Wireless Adapter Handsfree Call For Car PC TV

Specifications
Model: RT01
Technologies: BT5.0, A2DP, AVRCP

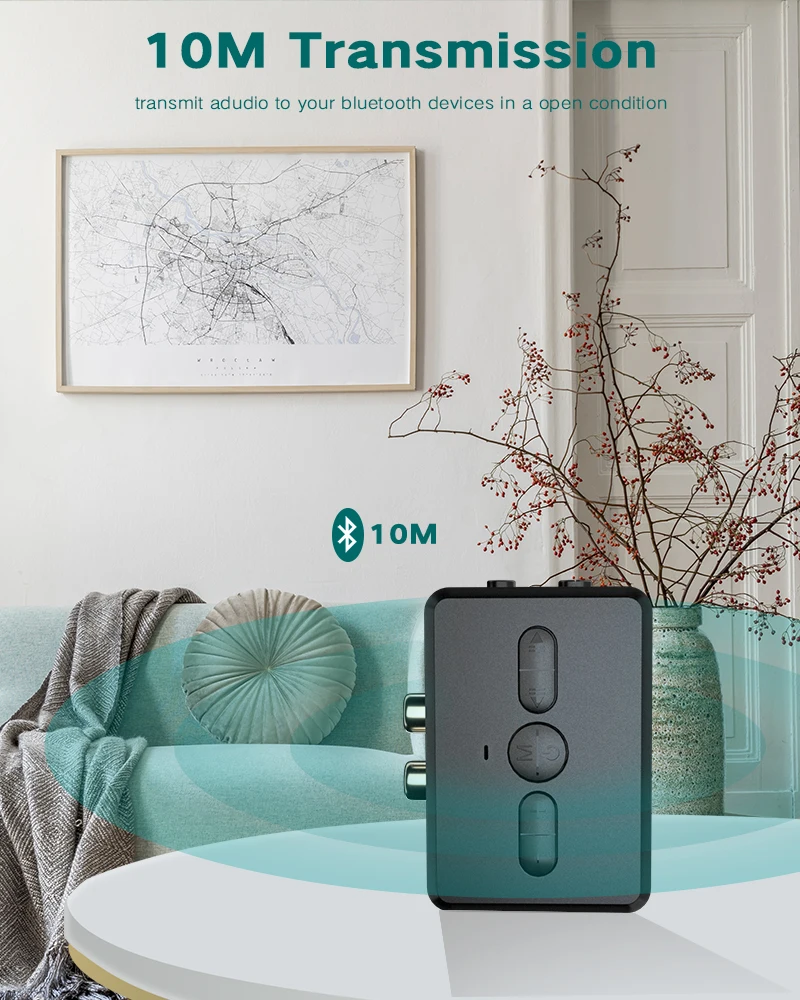

Operation Range: Up to 10m / 33ft (without any blocking objects)
Pairing name: RT01
Charging Time: 2 hours
Workingtime:12 hours
Battery Type: Li-Polymer (400mAh)
Dimensions: 65mm*45mm*21mm
Weight: 40g

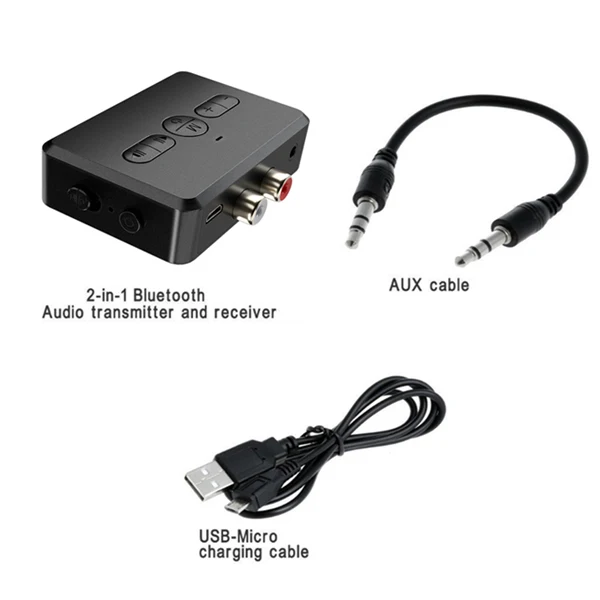

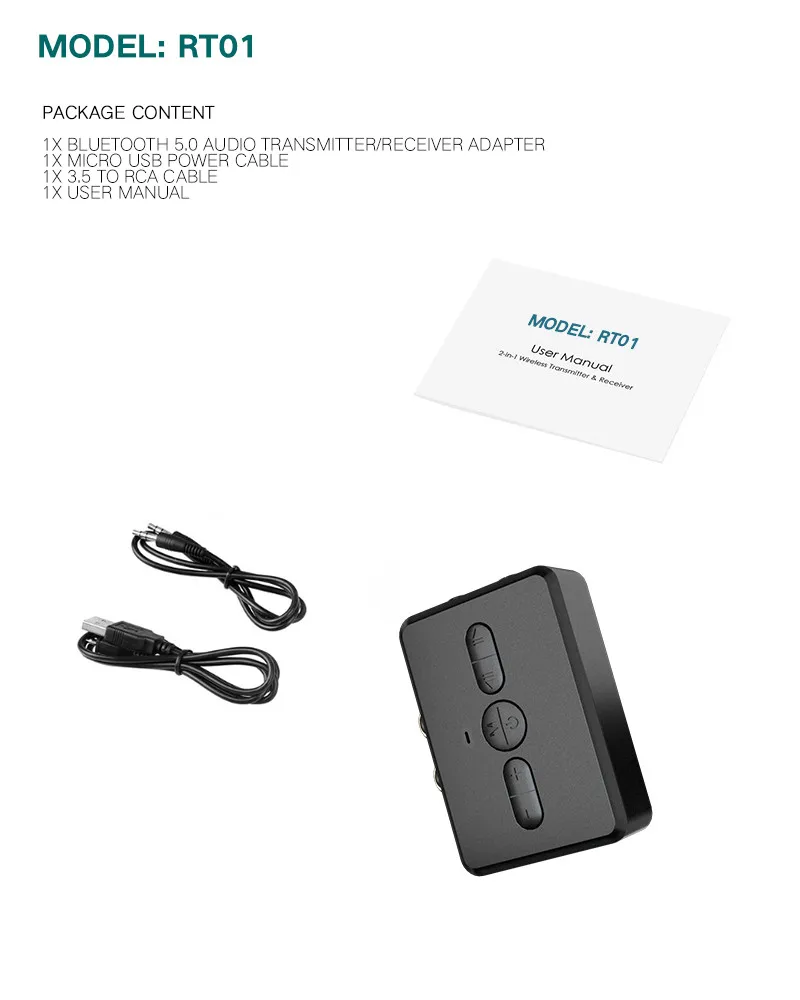

Package Content
1x Bluetooth 5.0 Audio Transmitter/Receiver Adapter
1x Micro USB Power Cable
1x 3.5 to 3.5 Audio Cable
1x User Manual

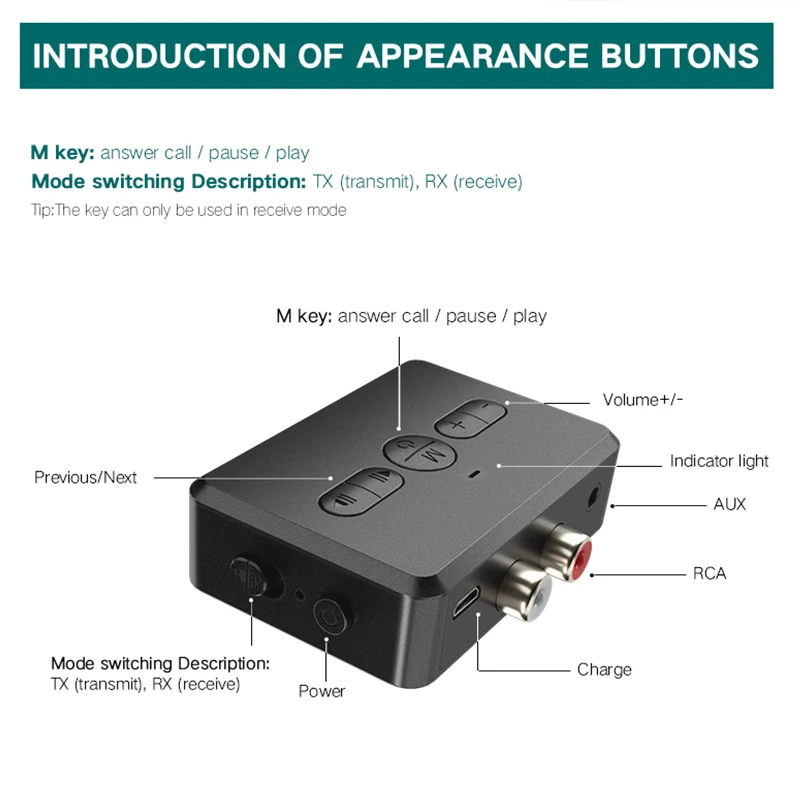

Power on: Press and hold the power on/off button until the LED lights up
Shutdown: Press and hold the power on/off button until the LED is off

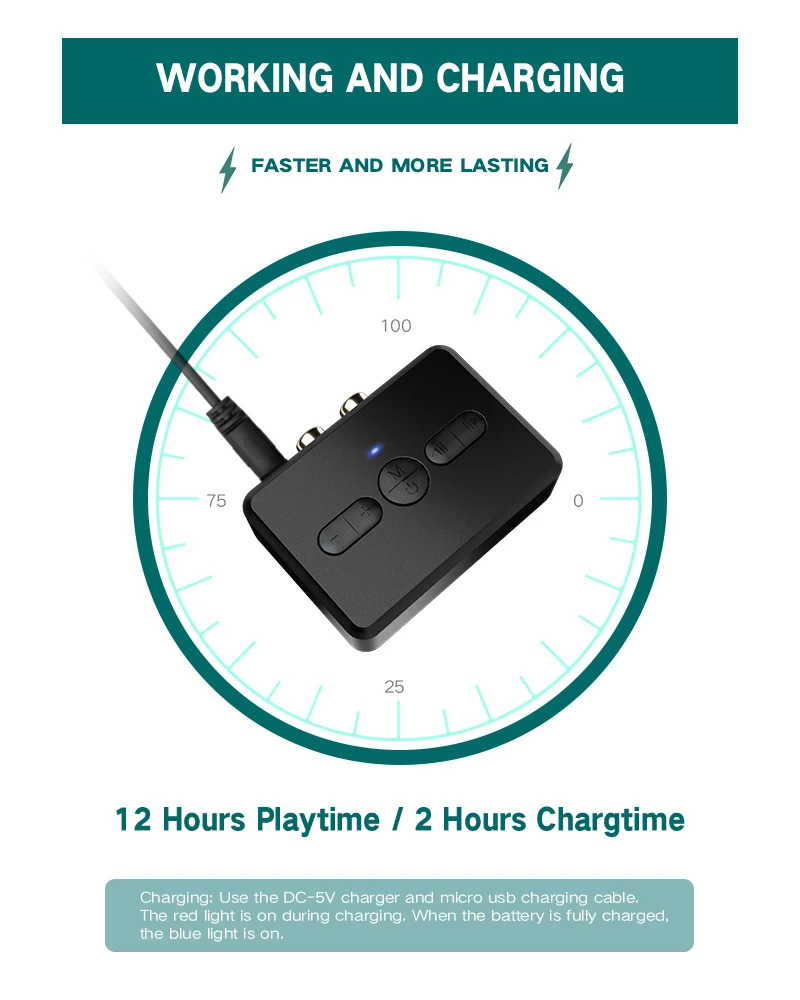

Charging: Use the DC-5V charger and micro usb charging cable. The red light is on during charging. When the battery is fully charged, Red light off.

Switch mode:
RX: Receive mode, indicator: blue LED
TX: Transmit mode, indicator light: red LED

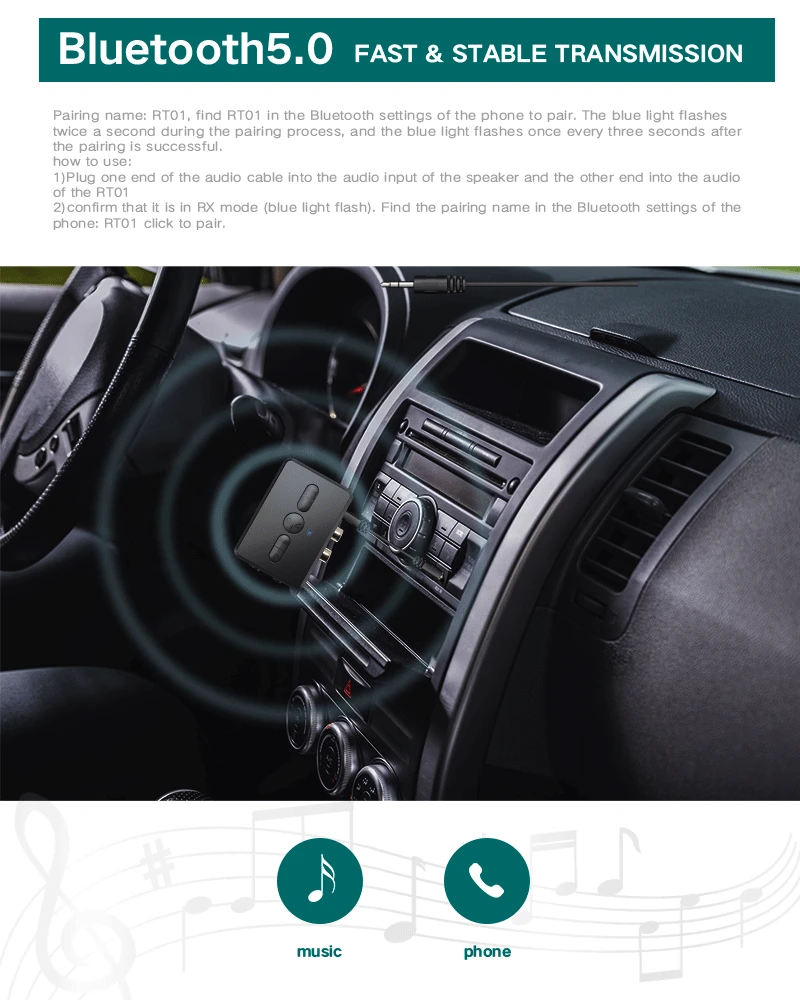

RX mode:
The receiving mode can be used in scenes such as home, car, etc., so that speakers without Bluetooth function can have Bluetooth function, and realize wireless connection with mobile phones, tablets and other devices, and bid farewell to wired constraints.

How to use:
First switch RT01 to receive mode (RX),Pairing name: RT01, find RT01 in the Bluetooth settings of the phone to pair. The blue light flashestwice a second during the pairing process, and the blue light flashesonce every three secondsafter the pairing is successful.
Plug one end of the audio cable into the audio input of the speaker and the other end into the audio of the RT01,Then you can play music.

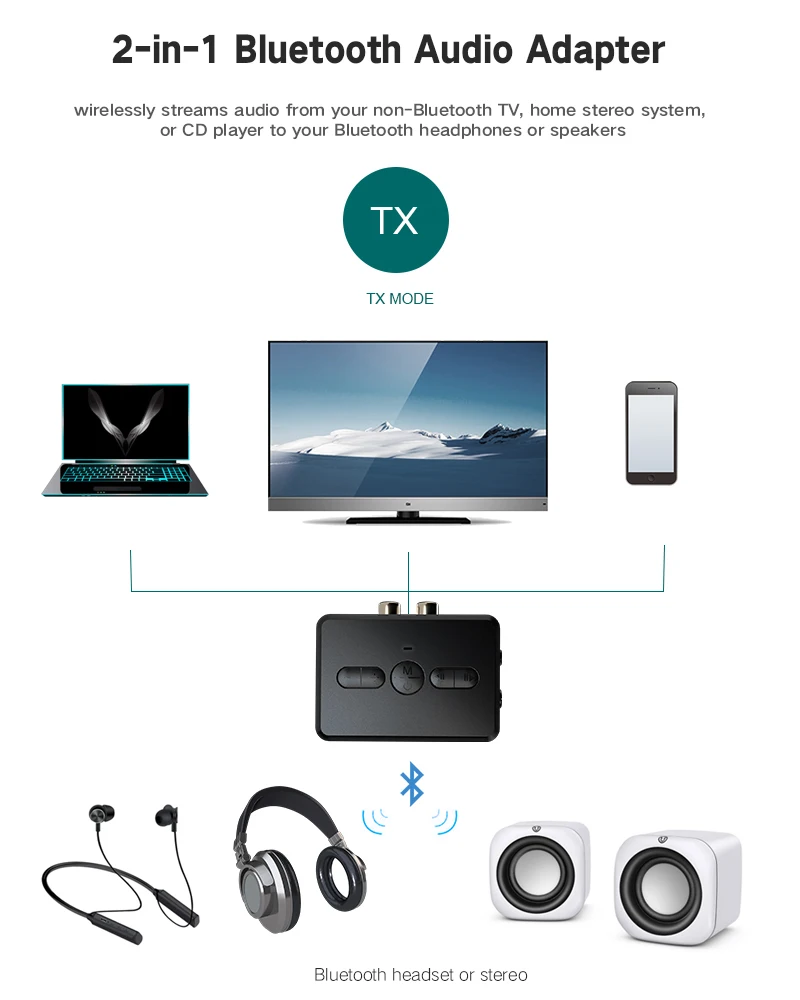

TX mode:
The launch mode can be used on computers, TVs and other non-Bluetooth-enabled sound source devices to help these devices transmit sound to Bluetooth speakers, Bluetooth headsets, etc.

TX mode will automatically search for other Bluetooth receiving devices (such as Bluetooth headset, Bluetooth speaker, Bluetooth receiver, etc.), The red light flashestwice a second during the pairing process, and the red light flashesonce every three secondsafter the pairing is successful.

How to use:
Plug one end of the audio cable into the audio output of the devices and the other end into the audio of the RT01.
Confirm that it is in TX mode (red light flash). The RT01 will automatically search for Bluetooth headset or Bluetooth speaker pairing. After the pairing is successful, the sound of t V or computer can be transmitted to Bluetooth speakers and other devices through RT01 for playback.

Bluetooth handsfree calling
In the receiving mode, this product supports Bluetooth hands-free calling. When the mobile phone calls, short press the M button to answer the call.
