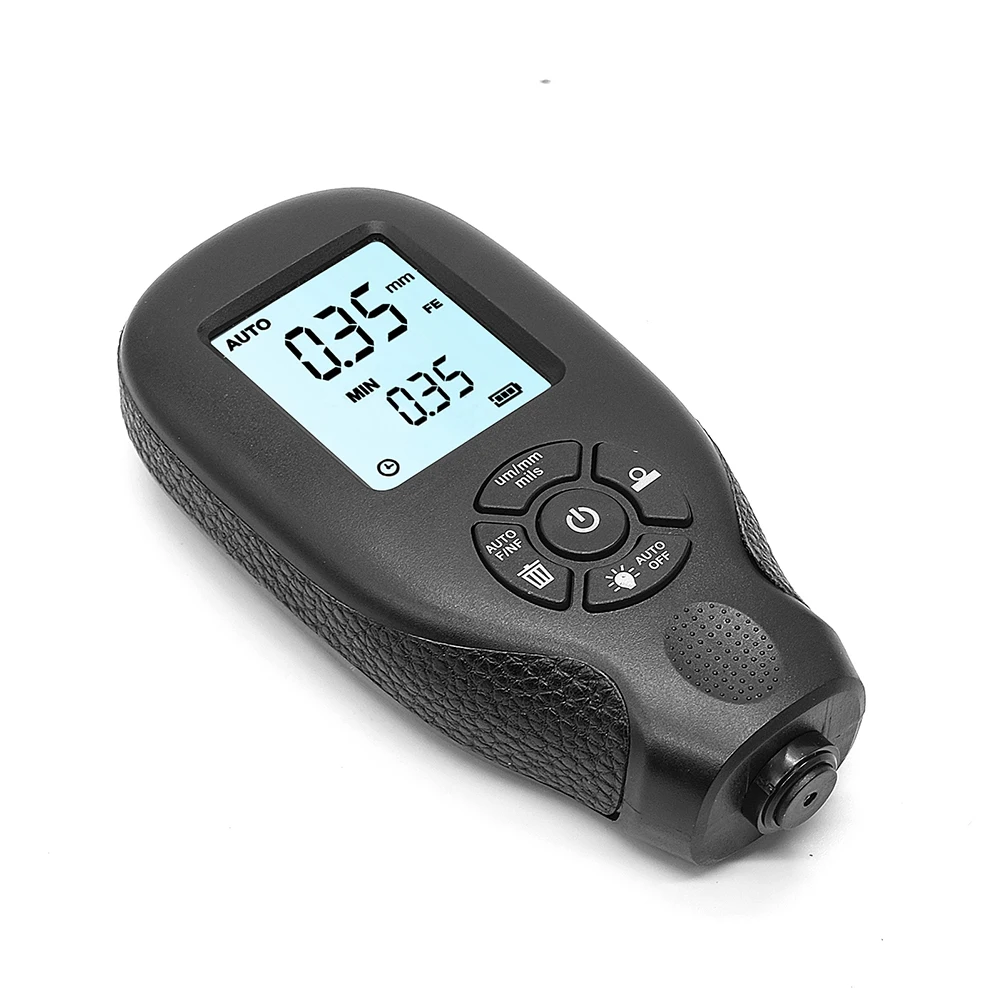

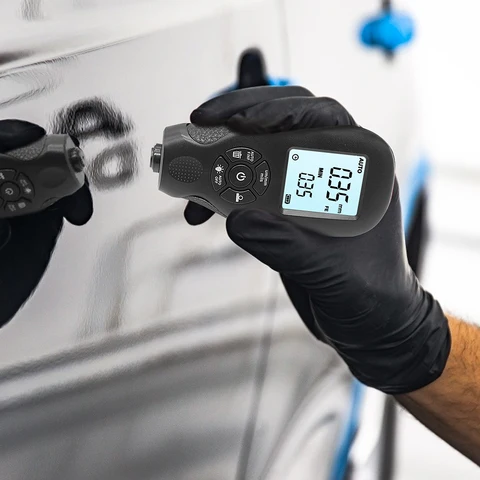

Paint Digital Coating Thickness Gauge HW-300 0-2000UM High-precision Backlight LCD Display Film Auto Thickness Meter Tester

HW-300 0-2000UM High-precision Digital Backlight LCD Automobile Film Thickness Meter Car Paint Coating Thickness Tester Gauge Manual Paint Tools
Feature:
Automatic temperature compensation algorithm to ensure more accuracy.

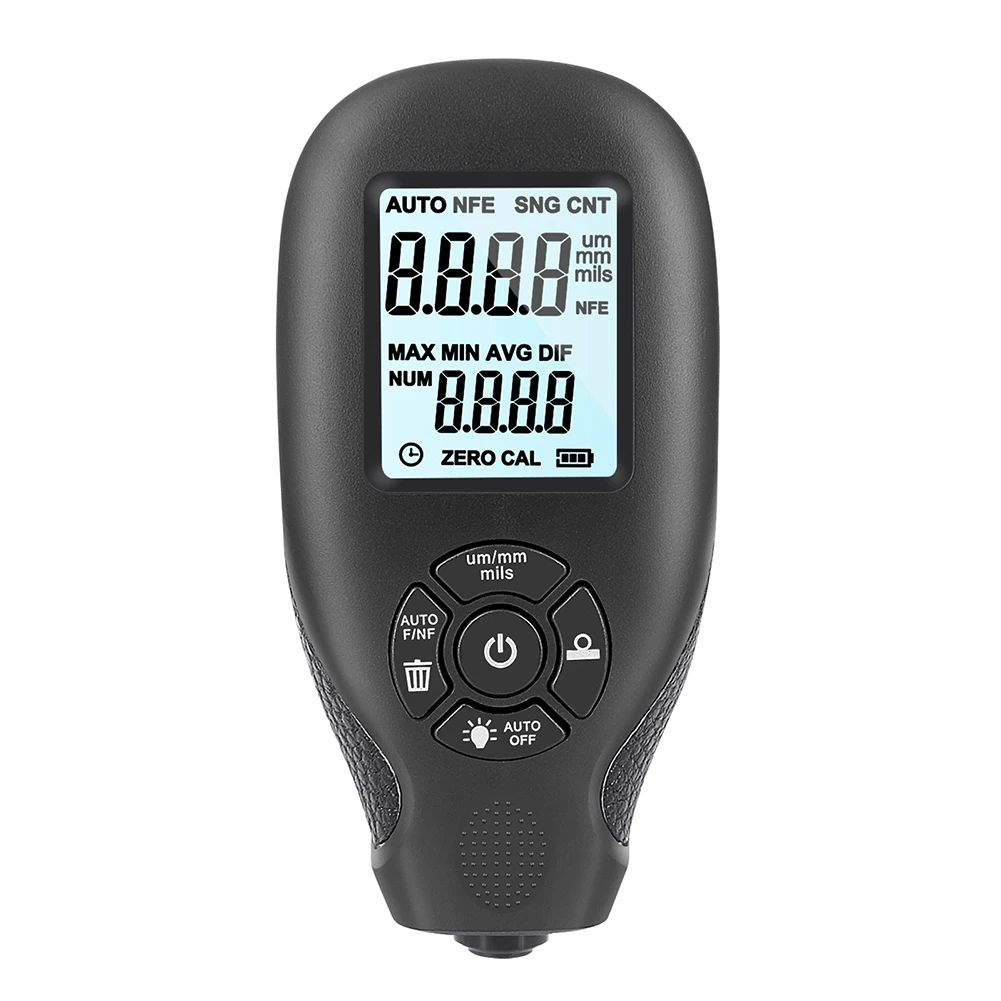

Display the maximum, minimum, average, and number of statistics.
The probe can be switched freely in automatic, magnetic induction, and eddy current modes.
Simple and reliable zero calibration.
The unit of um/mils can be switched freely.

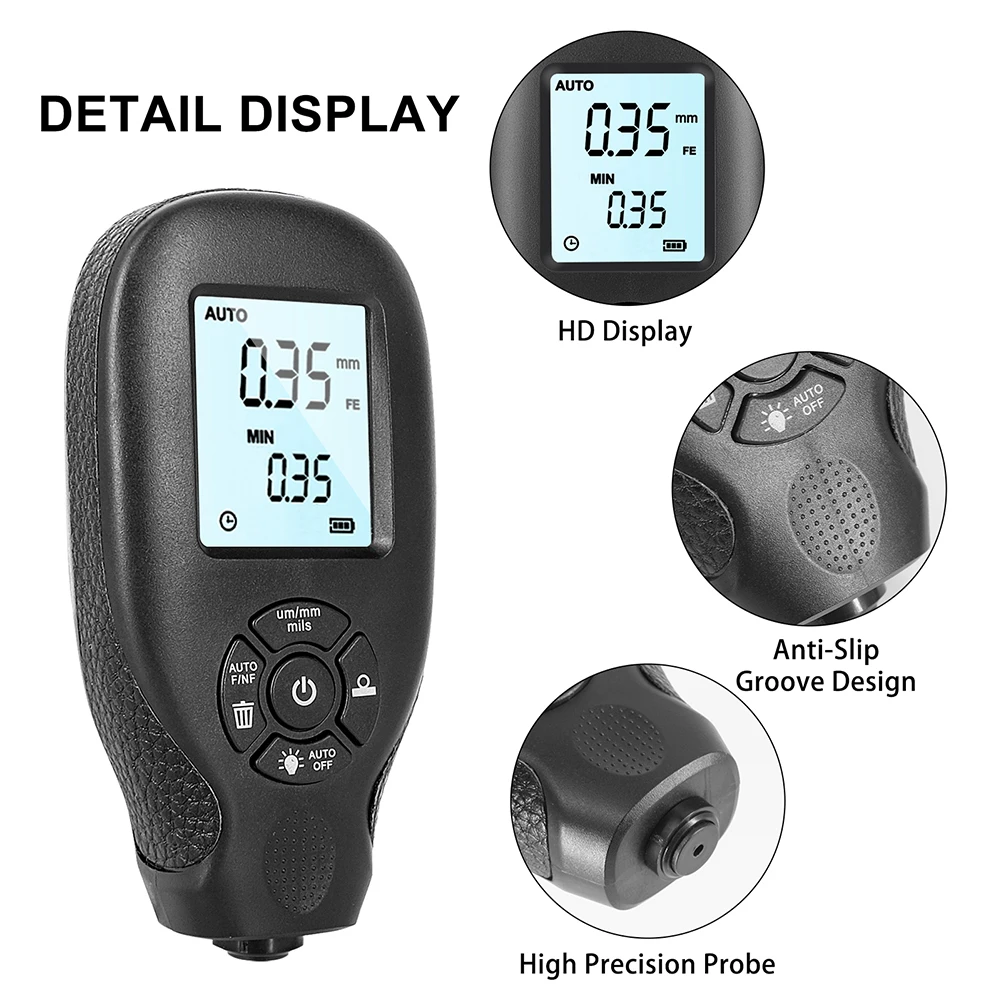

LCD with bright backlight.
Support automatic shutdown.

Specification:
Product name: HW-300 coating thickness gauge
Material: ABS
Colour: Black
Product size: 110mm*52mm*25mm
Resolution: 0.01mm/1mil
Measuring range: 0-2000UM
Measurement accuracy: ±(3%+1UM)

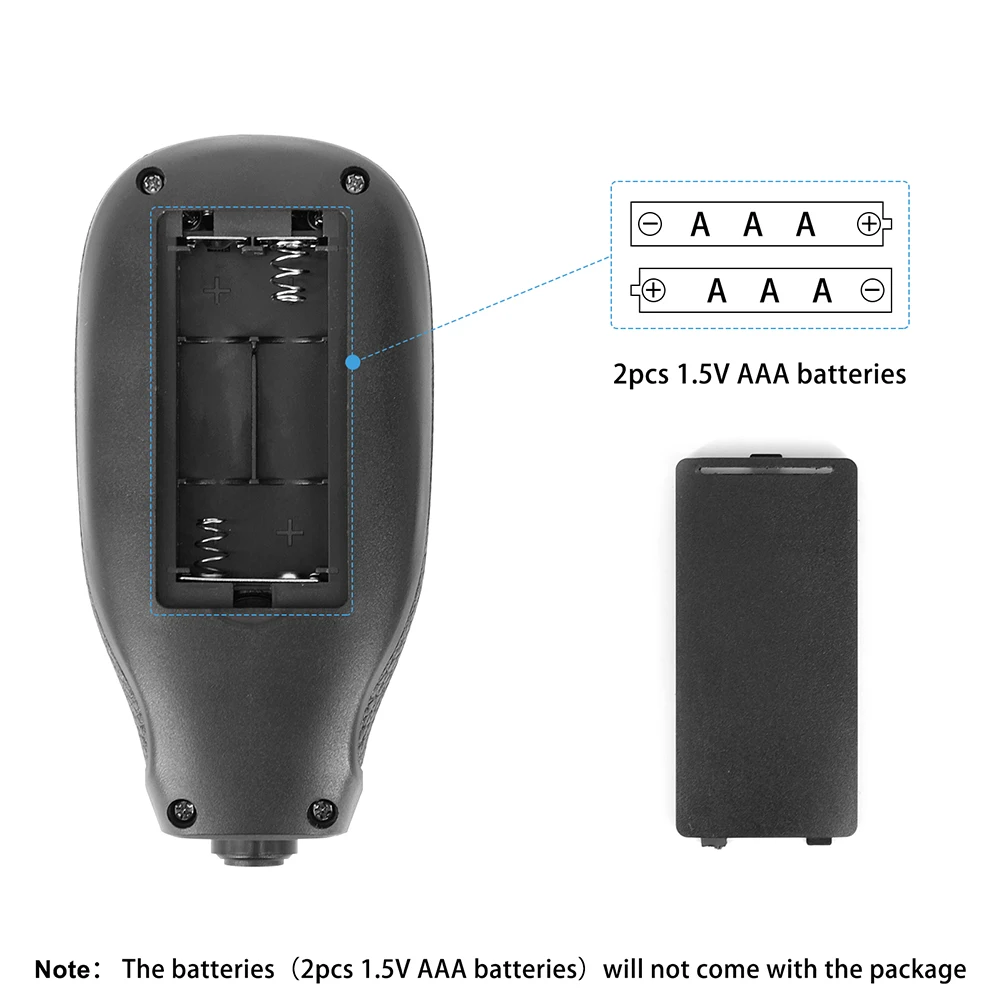

Power supply: 2 X 1.5V AAA batteries (not included)
Operating temperature: -10 degrees Celsius and 50 degrees Celsius

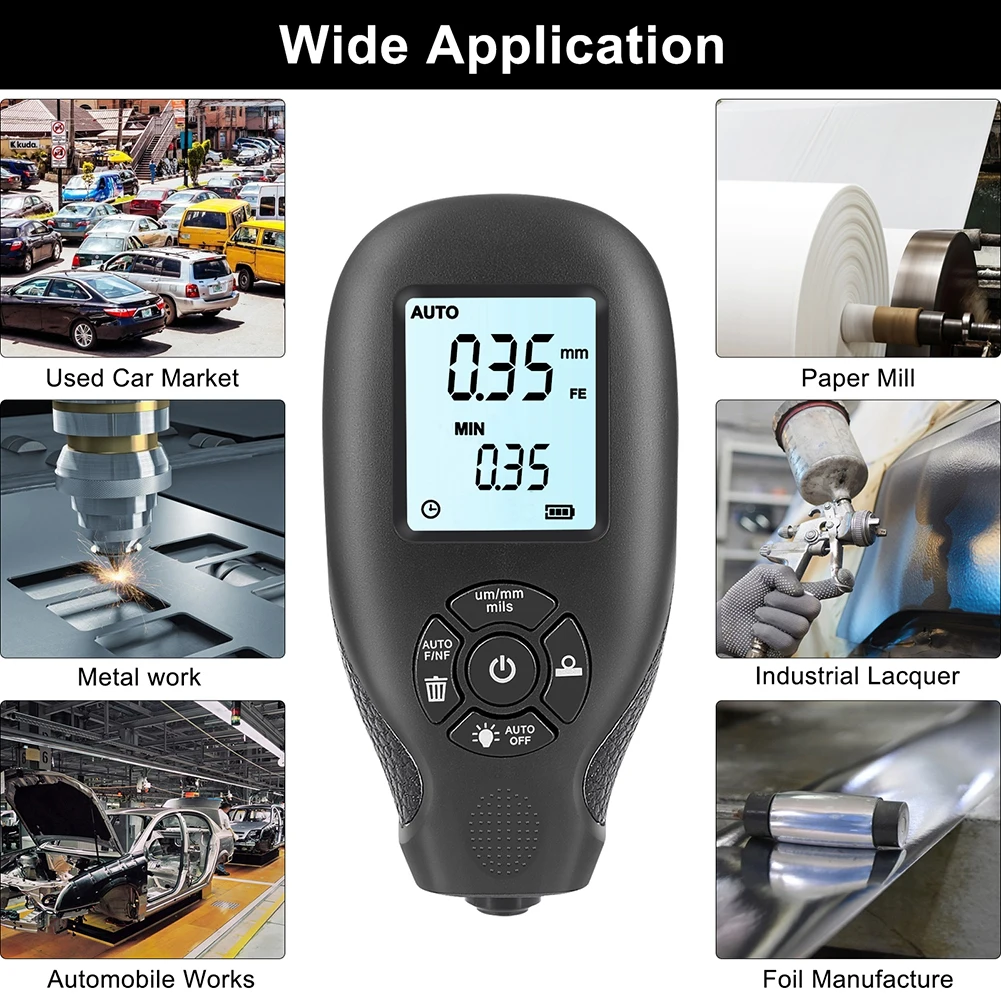

Applicable scenarios: This instrument can measure coating and plating thickness without damage, quickly and accurately. It is widely used in the detection fields of second-hand car paint, electroplating layer, surface technology, pipeline anti-corrosion layer, mechanical equipment surface anti-corrosion, chemical equipment, quality control, etc.

Overview:
Thickness gauges are used to measure the thickness of electroplated and coated plates on metals, such as paint/chromium on steel, paint and anodized coatings on aluminum/copper.
The gauge uses a precision integrated probe, and uses the principles of electromagnetic induction and eddy current effects to automatically detect the properties of the substrate.
The gauge is designed to non-destructively measure the thickness of coatings and paints. It is an indispensable material for surface treatment and is widely used in manufacturing, metal processing, chemical industry, and commodity inspection fields. It can also work stably in laboratories, workshops and outdoors.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow slightly measuring deviation due to manual measurement.

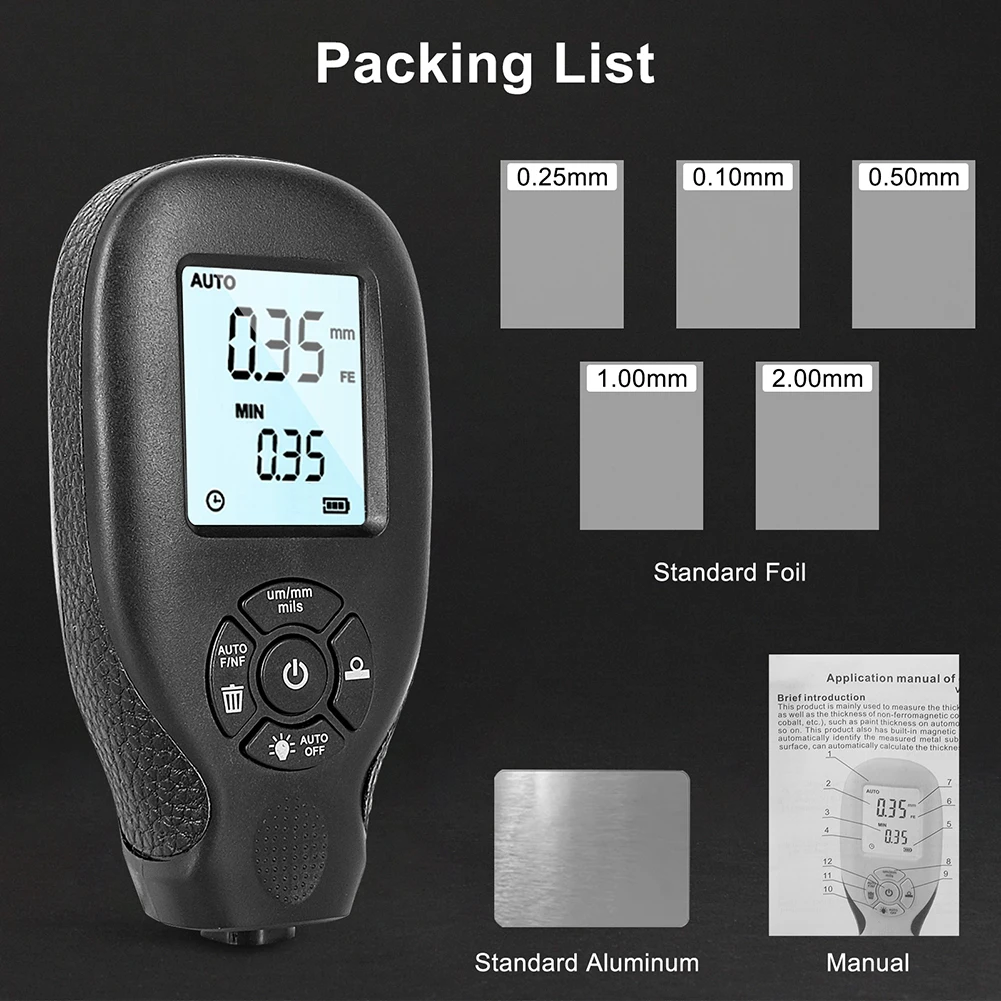

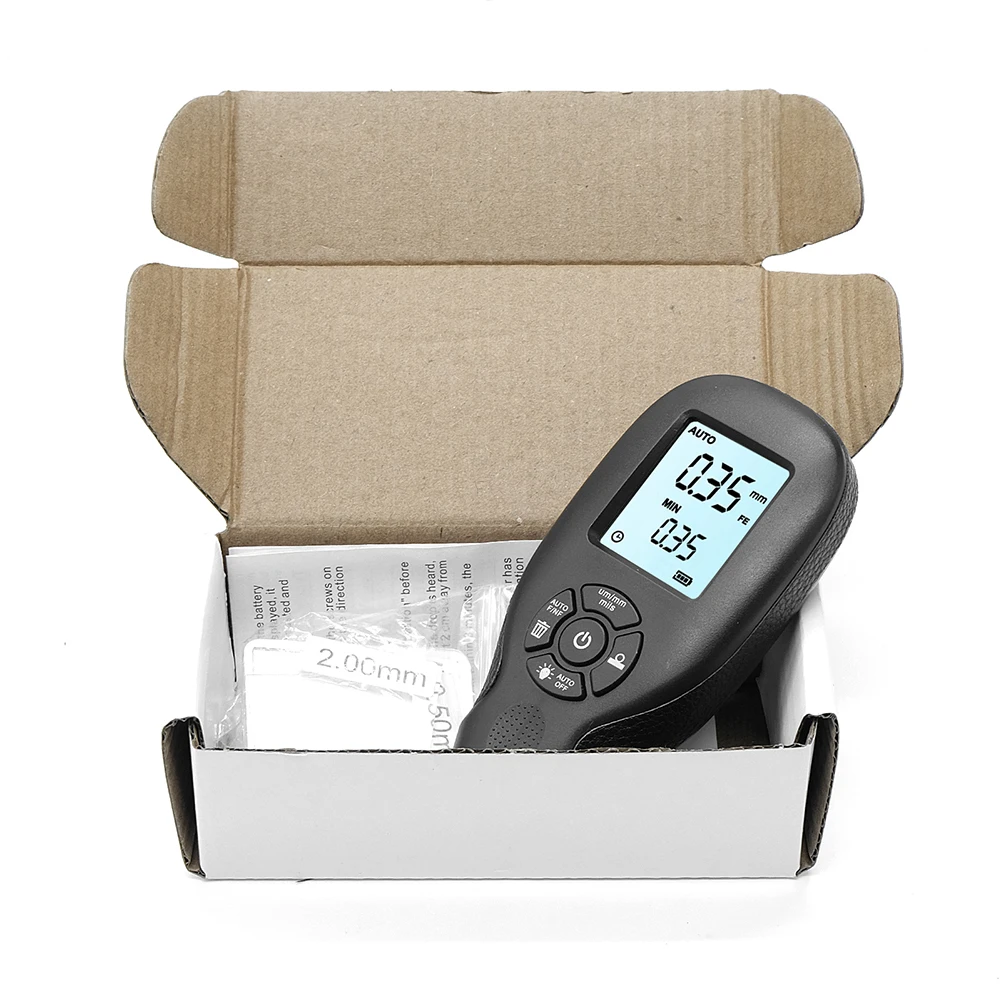

1 X Thickness Gauge
1 X Manual

1 X Calibration Sheet
