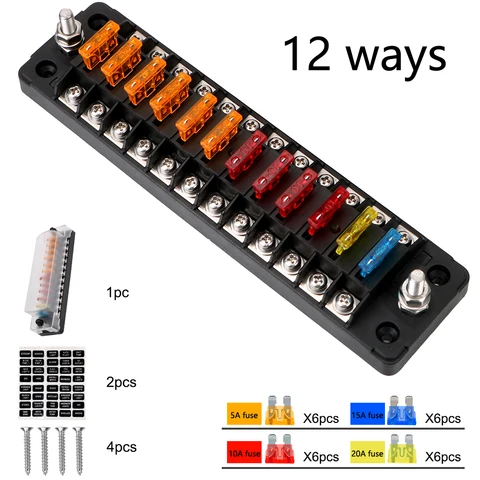

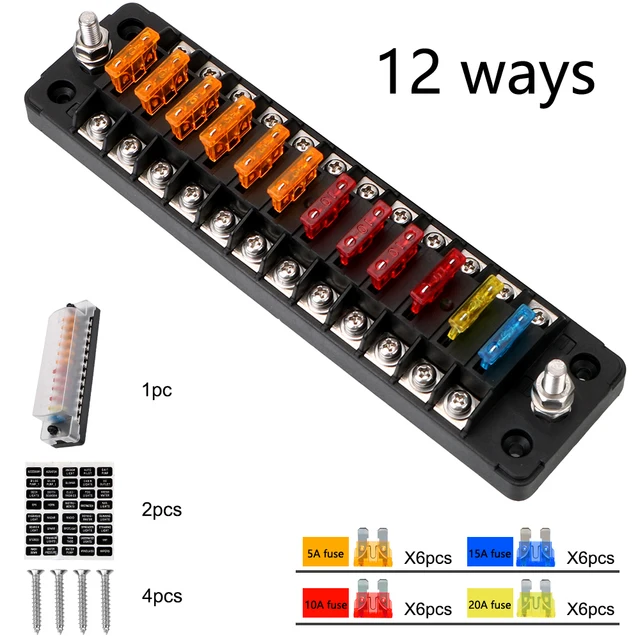

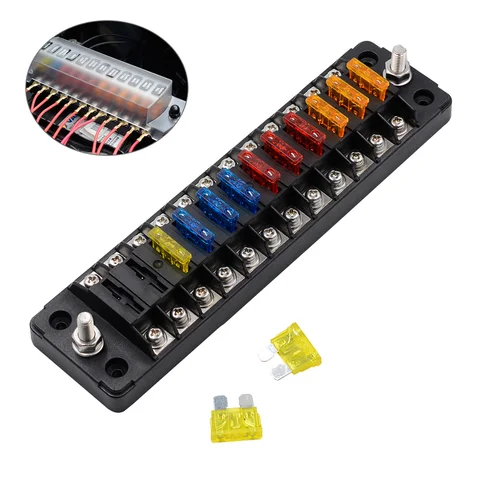

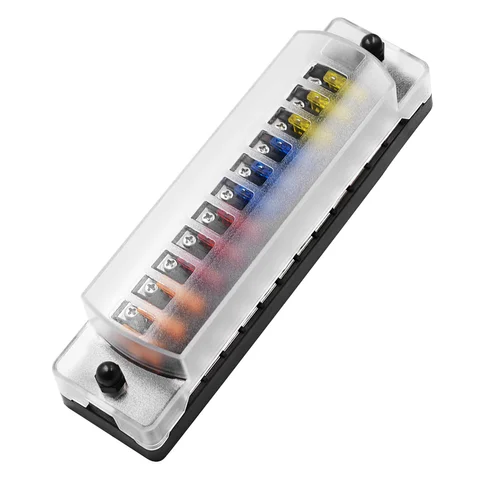

12 Ways Fuse Box
-

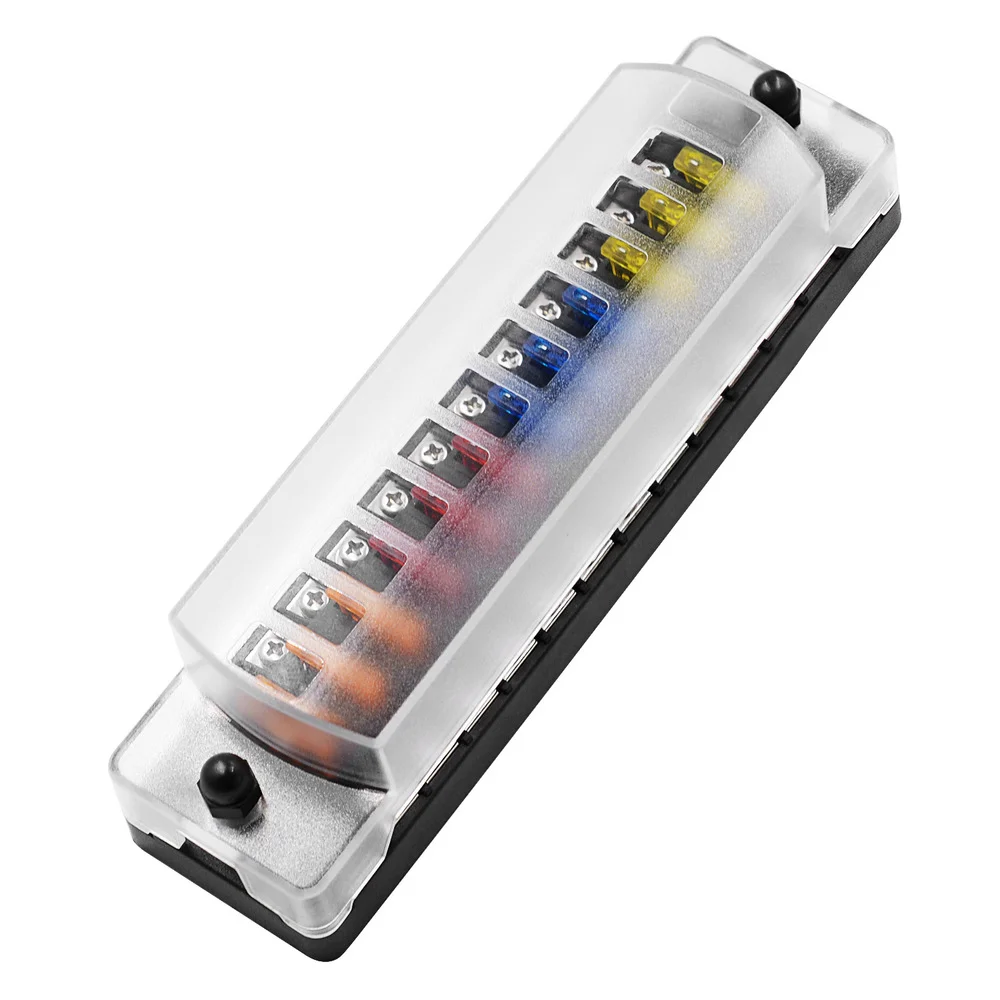

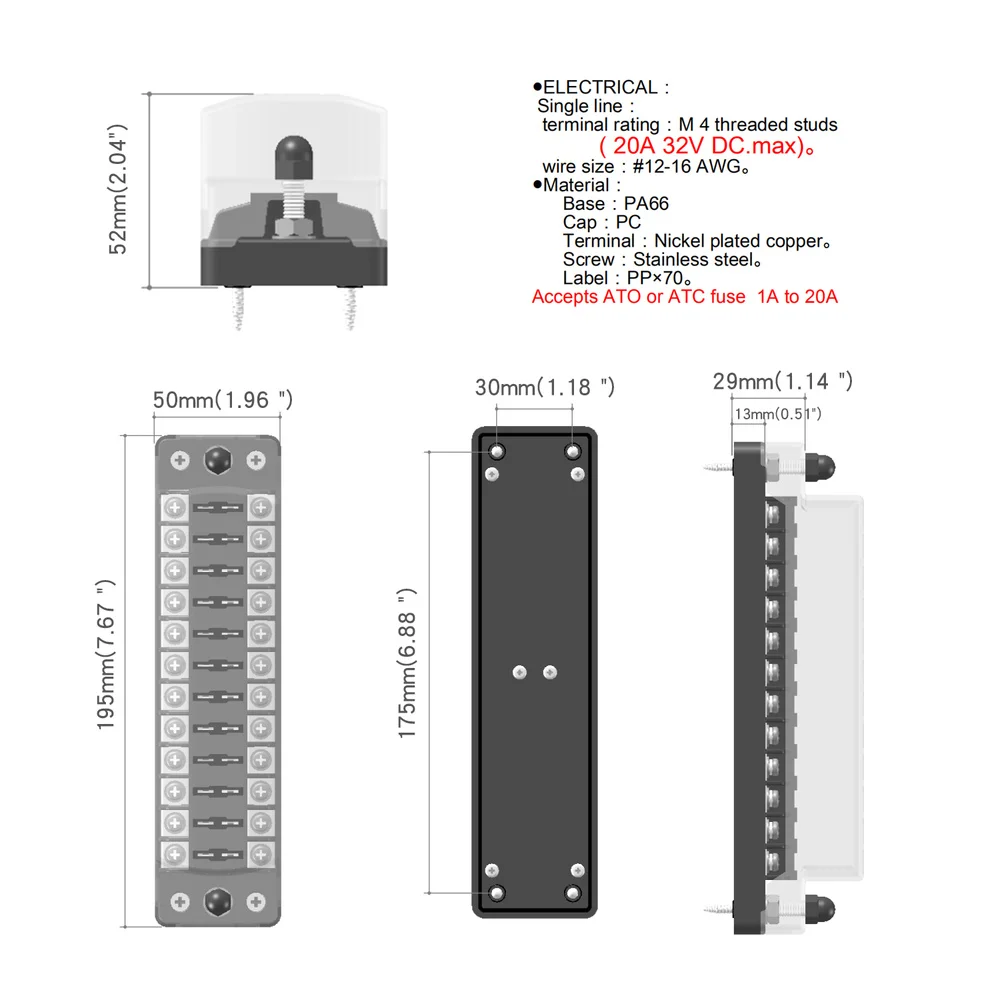

Material: PA66 body, PC dust cover, nickel-plated copper terminal, stainless steel screw, PP × 70 sticker
-
Input rated voltage: 32V
-
Input rated current: 75A
-
Maximum output current: 20A per circuit
-
Main wire terminal: M6 threaded stud (75A 32V DC max)
-
Main wire lead: # 4-6AWG
-
Single wire terminal: M4 threaded stud (20A, 32V, DC max)
-
Single wire: # 12-16AWG
-

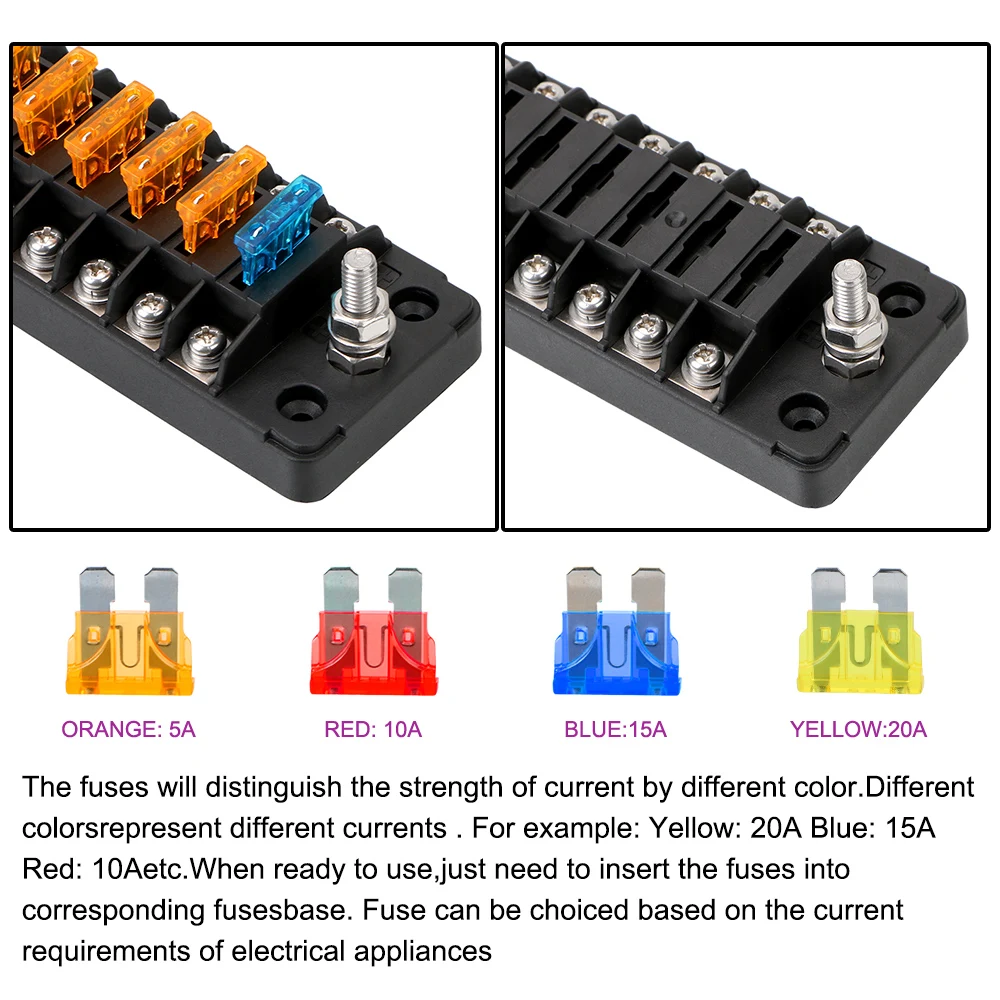

Fuse type: accept ATO or ATC fuse from 1A to 20A
-
Installation range: can be installed on cars, villas, RVs, buses, yachts, boats, etc.
-

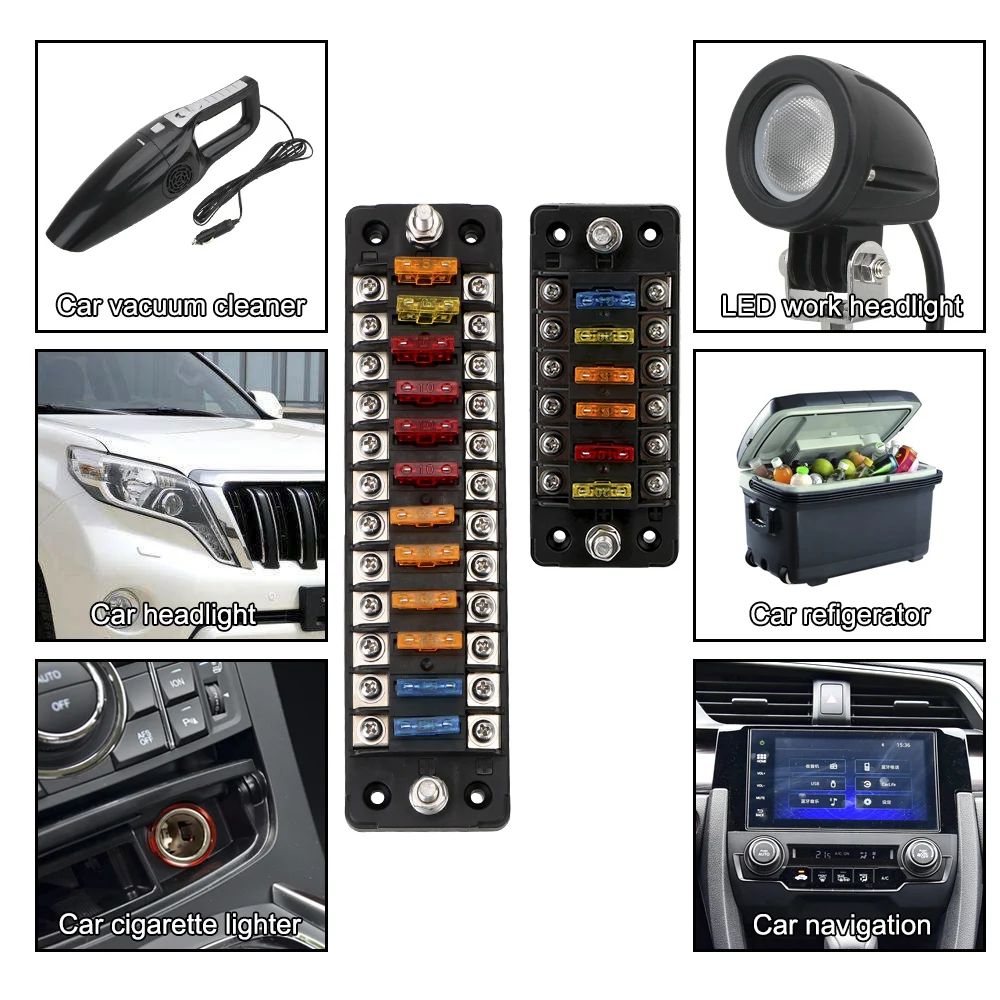

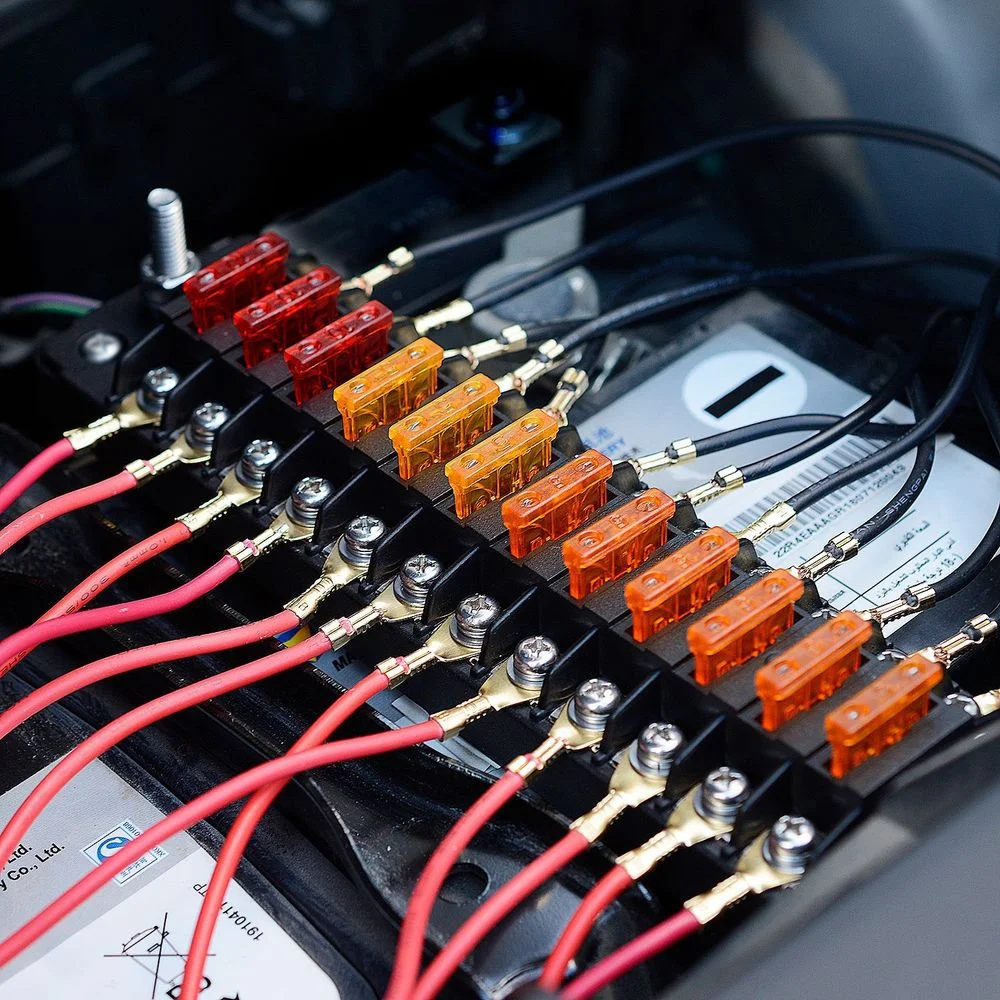

Scope of use: can be directly connected to the wire of any electrical appliances on the car or ship. Such as: car ceiling lights, car headlights, sight width lights, fog lights, warning lights, on-board refrigerator, on-board charger, on-board fan, on-board TV, etc.
-
Product accessories:
sticker X2; Self-tapping screw X4; 20A fuse X6; 15A fuse X6; 10A fuse X6; 5A fuse X6
-
Material: PA66 body, PC dust cover, nickel-plated copper terminal, stainless steel screw, PP × 70 sticker
-
Input rated voltage: 32V
-
Input rated current: 75A
-
Maximum output current: 20A per circuit
-
Main wire terminal: M6 threaded stud (75A 32V DC max)
-
Main wire lead: # 4-6AWG
-
Single wire terminal: M4 threaded stud (20A, 32V, DC max)
-
Single wire: #12-16AWG
-
Fuse type: accept ATO or ATC fuse from 1A to 20A
-
Installation range: can be installed on cars, villas, RVs, buses, yachts, boats, etc.
-
Scope of use: can be directly connected to the wire of any electrical appliances on the car or ship. Such as: car ceiling lights, car headlights, sight width lights, fog lights, warning lights, on-board refrigerator, on-board charger, on-board fan, on-board TV, etc.
-

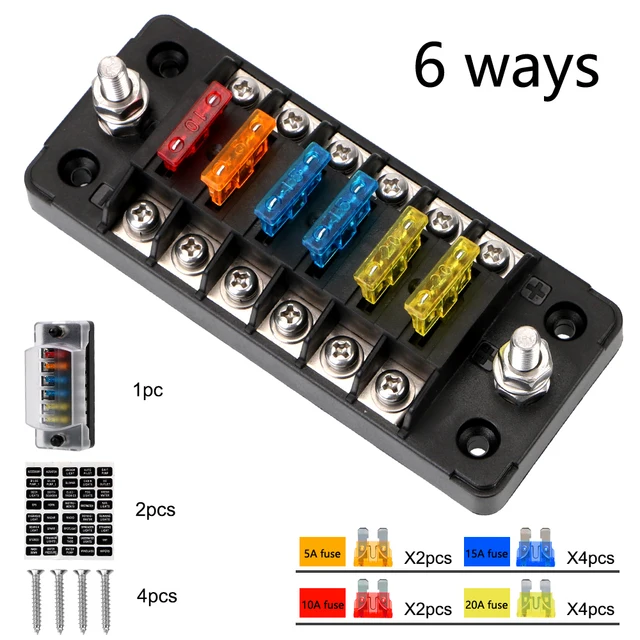

product accessories:
sticker X2; Self-tapping screw X4; 20A fuse X4; 15A fuse X4; 10A fuse X2; 5A fuseX2
Product advantages
-
The fuse holder are made of PA66 flame retardant and high temperature and low temperature environmental protection materials, which fully meets the requirements. The fuse holders must have good mechanical strength, insulation, heat resistance and flame resistance, and should not break, deform, combust and short-circuit during use.
-
All the fuse clips are made of nickel-plated copper, which has corrosion resistance and excellent electrical conductivity.
-
All the fasteners are made of stainless steel. The fuse box input and the output end is fixed with tightening screws, which can be installed more quickly. And the fuse box is fixed with self-tapping screws, which is simpler and safer to install.
-

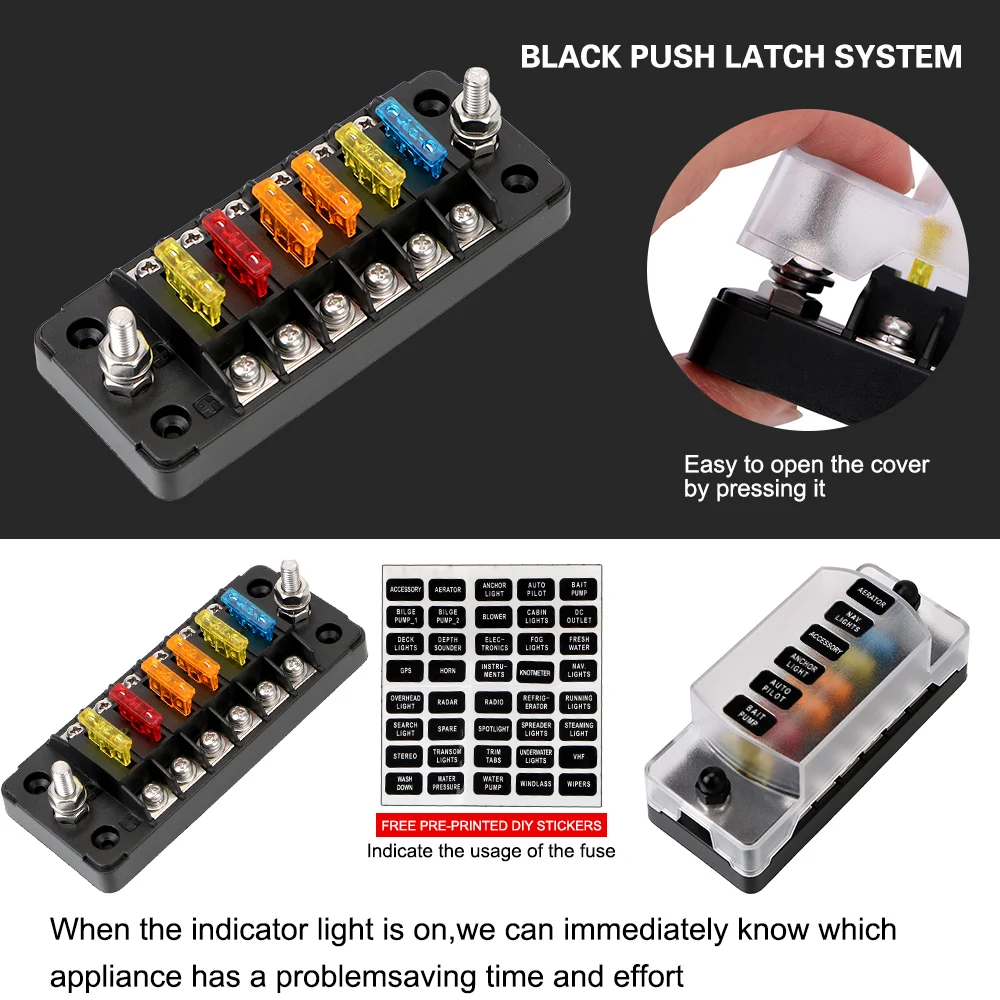

The package comes with stickers that can be attached to the electrical appliances we connect according to the name on the stickers. When the fuse is broken, we can immediately identify which electrical appliance has a problem, saving time and effort.
-
The fuse box comes with double fuses. When the fuse is burned out during application, it can be replaced from a spare fuse immediately, and the fuse is sent to multiple Abe. You can choose the fuse for Abe according to the current electrical appliances
-
1 x 12 Ways Fuse Box/6 Ways Fuse Box
