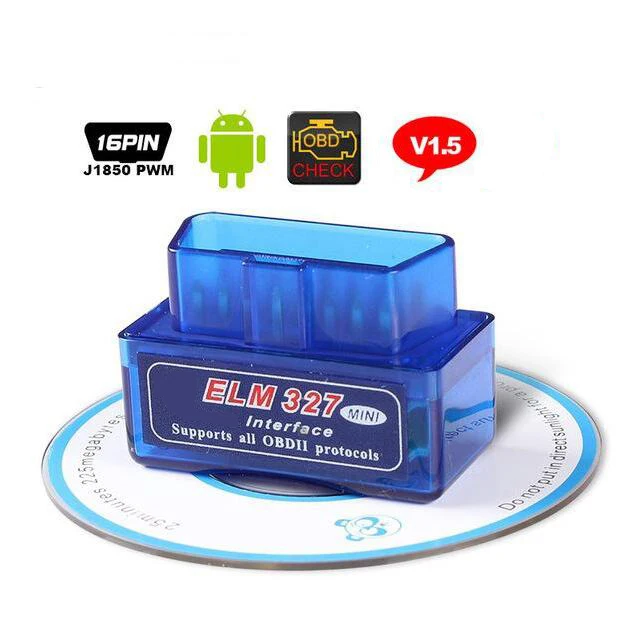

OBD2 Mini ELM327 Bluetooth-compatible V1.5 PIC18F25K80 Android PC ELM 327 1.5 25K80 OBD2 Car Disgnostic Scanner

$5.93

OBD2 Mini ELM327 Bluetooth-compatible V1.5 PIC18F25K80 Android PC ELM 327 1.5 25K80 OBD2 Car Disgnostic Scanner

  • Spot goods
  • Login visible 1 Piece+
  • Login visible 3 Piece+
  • Login visible 10 Piece+
  • Item ID：GBY5377052240430501
  • Color： old BT V1.5 V1.5 with 25K80 chip BT V1.5 Blue BT V1.5 Black bt V1.5 bt V2.1
  • Size： -
  • Description
  • Cost estimate
  • Logistics price (one ticket per ticket)



Highlights of OBDII ELM327:

With Chip PIC18F25K80.Stable Function,supports 12V Diesel Cars.

Connection:Wireless bluetooth-compatible ,works For Android Smart Phone.(No Supported iOS System)

Works with Most OBD-II compliant vehicles.For Compatible details car list,need test .


Support Languages:

English ,Czench ,Danish,Genman,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish

Compatible Software:

Window version:ScanMaster-ELM, ScanTool.net, PCMSCAN;(Works for Windows/XP/Vista &7)

Androidversion:Torque,OBD Car Doctor, Mini OBD, DashCommand,EOBD;

Symbian version: OBDScope.

Functions:


Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many other..

Multi-Protocol Support:

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO 9141-2 (5 baud init,10.4 kbaud)

ISO 14230-4 KWP (5 baud init,10.4 kbaud)

ISO 14230-4 KWP (fast init,10.4 kbaud)

ISO 15765-4 CAN (11 bit ID,500 kbaud)

ISO 15765-4 CAN (29 bit ID,500 kbaud)

ISO 15765-4 CAN (11 bit ID,250 kbaud)

ISO 15765-4 CAN (29 bit ID,250 kbaud)

SAE J1939

Software Display:




ELM327 V1.5 Blue Color:

ELM327 V1.5 Black Color:
