Enter store- Description

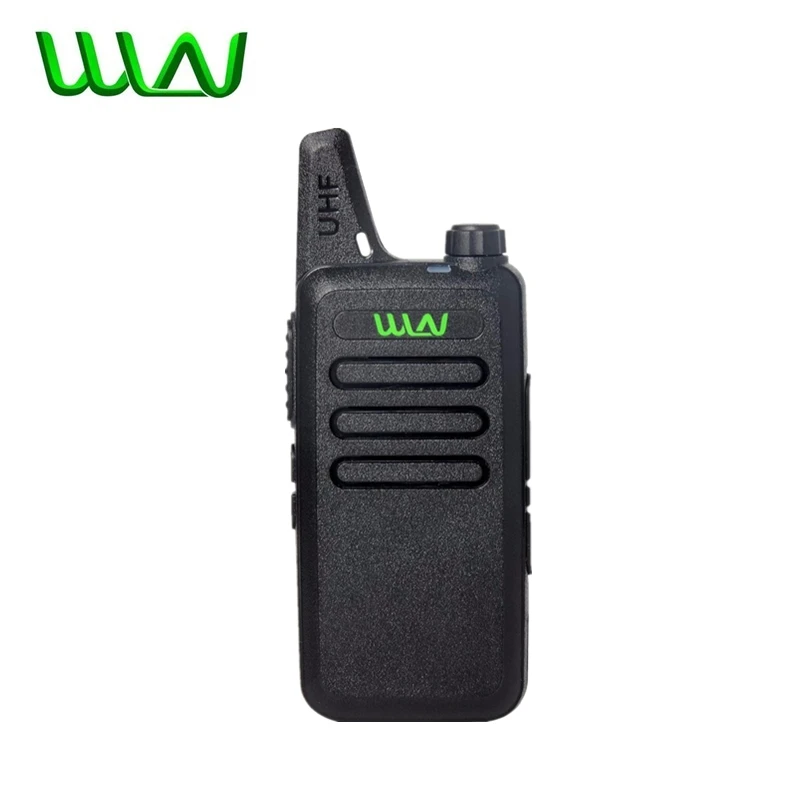

1 x WLN KD-C1 UHF 400-470 MHz MINI Two Way Radio

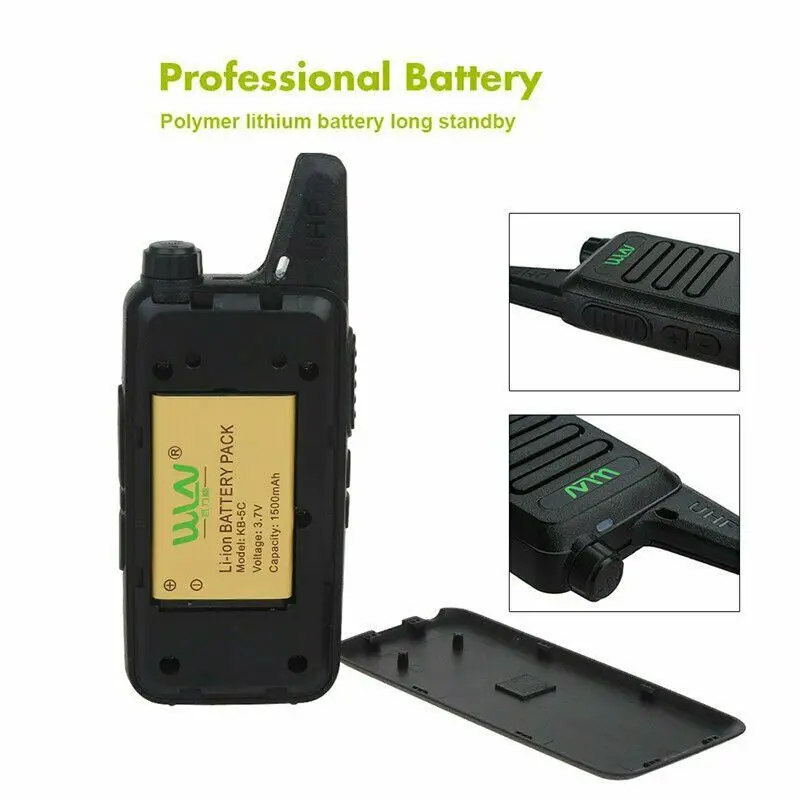

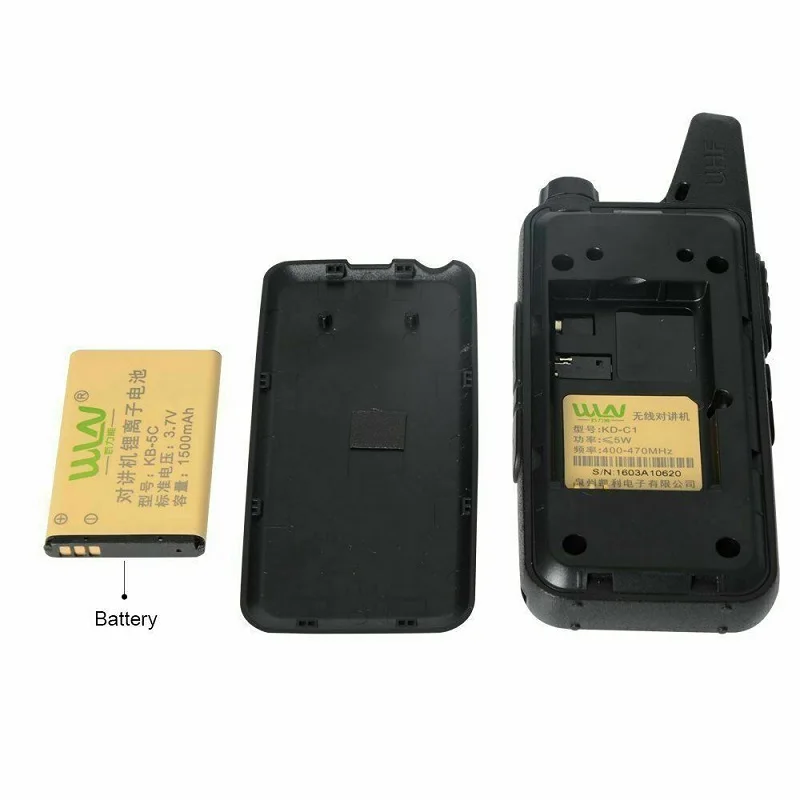

1 x Li-ion Battery
1 x Belt Clip
1 x Users Manual
1 x USB Charge Cable
1 x AC Adapter
Feature:
50 CTCSS/105 CDCSS
VOX Function
Voice Prompt
PC Programming
Emergency Alarm
Intelligent Charging
Battery Save
Low Voltage Alert
Time-out Timer
Torch Light
Specification:
| General Specifications |
|
| Frequency Range |
UHF 400-470MHz |
| Channel Capacity |
16 |
| Channel Spacing |
25KHz |
| Operated Voltage |
3.7 V |
| Battery |
1500MAh Li-ion |
| Battery Life(5-5-90 duty cycle) About 8 hours |
|
| Frequency Stability |
±2.5ppm |
| Operated Temperature |
-30°c-+60°c |
| Antenna Impedance |
50Ω |
| Dimensions (L×W×H) (with battery,without antenna) |
110×50×32 mm |
| Weight (with battery/antenna) |
198g |
| Communication Range |
about 6km |
| Transmitter |
|
| RF Power Output |
<5W |
| Spurious Emission |
≤65dB |
| FM Noise |
≤-45dB(W) ≤-40dB (N) |
| Audio Distortion |
≤5% |
| Transmitting Current |
≤1.3A |
| Receiver |
|
| Sensitivity (12dB SINAD) |
≤0.20 uV |
| Selectivity |
55dB/50dB |
| Intermodulation |
≥65dB |
| Adjacent Channel Selectivity ≥60dB |
|
| Spurious Response |
≥60dB |
| FM Noise |
45dB/40dB |
| Audio Power Output |
1000mW |
| Audio Distortion |
≤5% |
| Standby Current |
≈15mA (with battery save on) |
