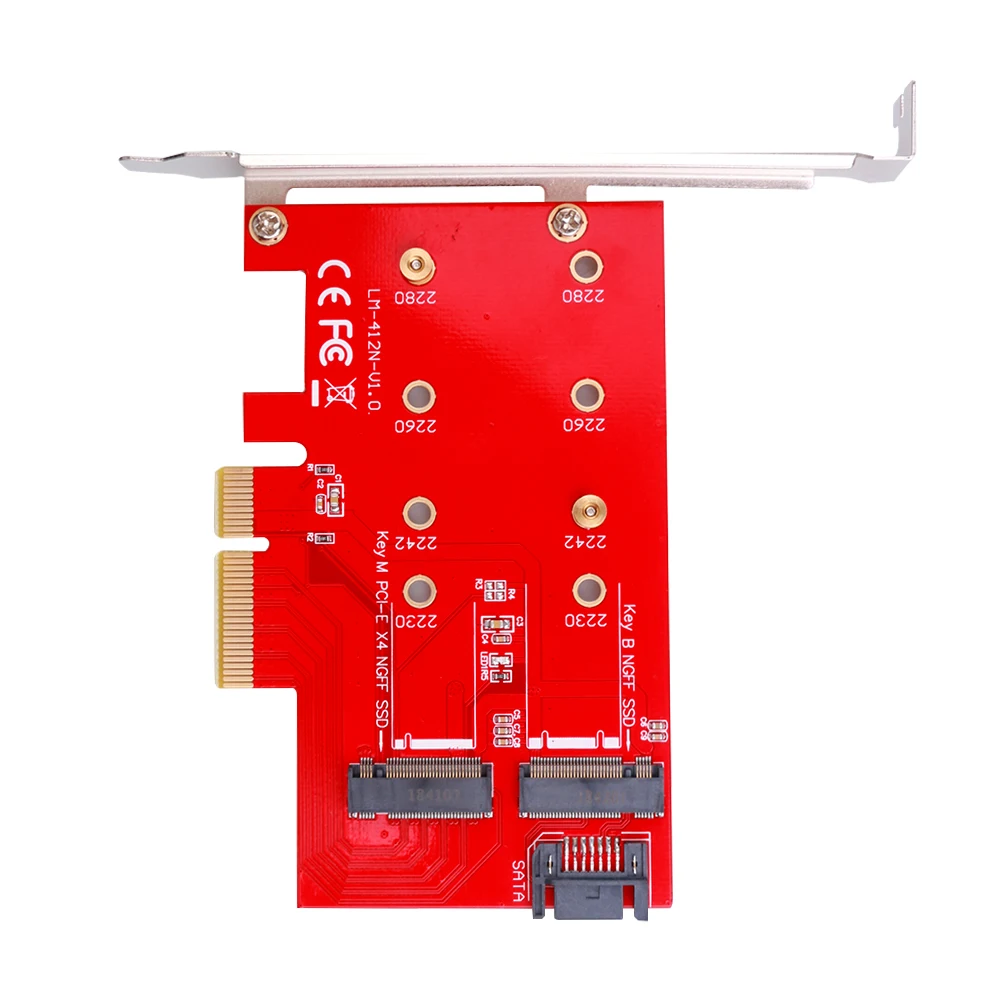

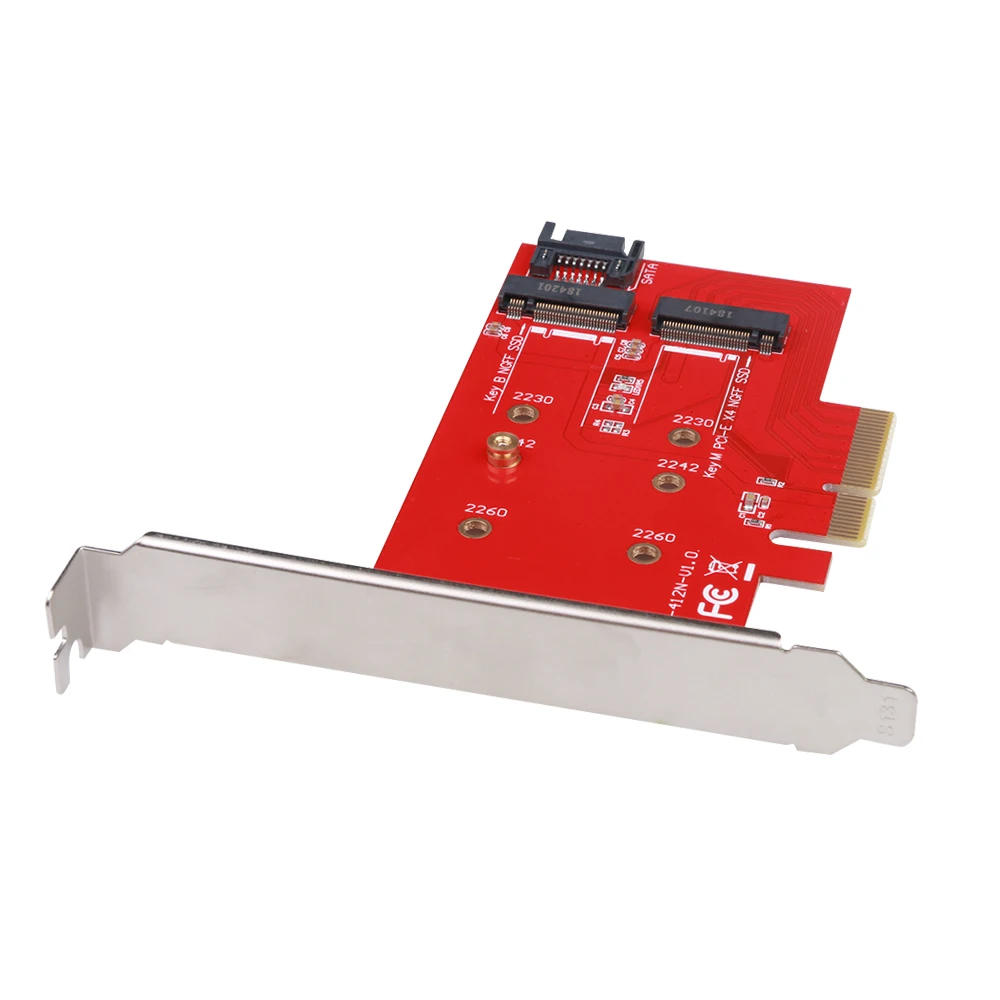

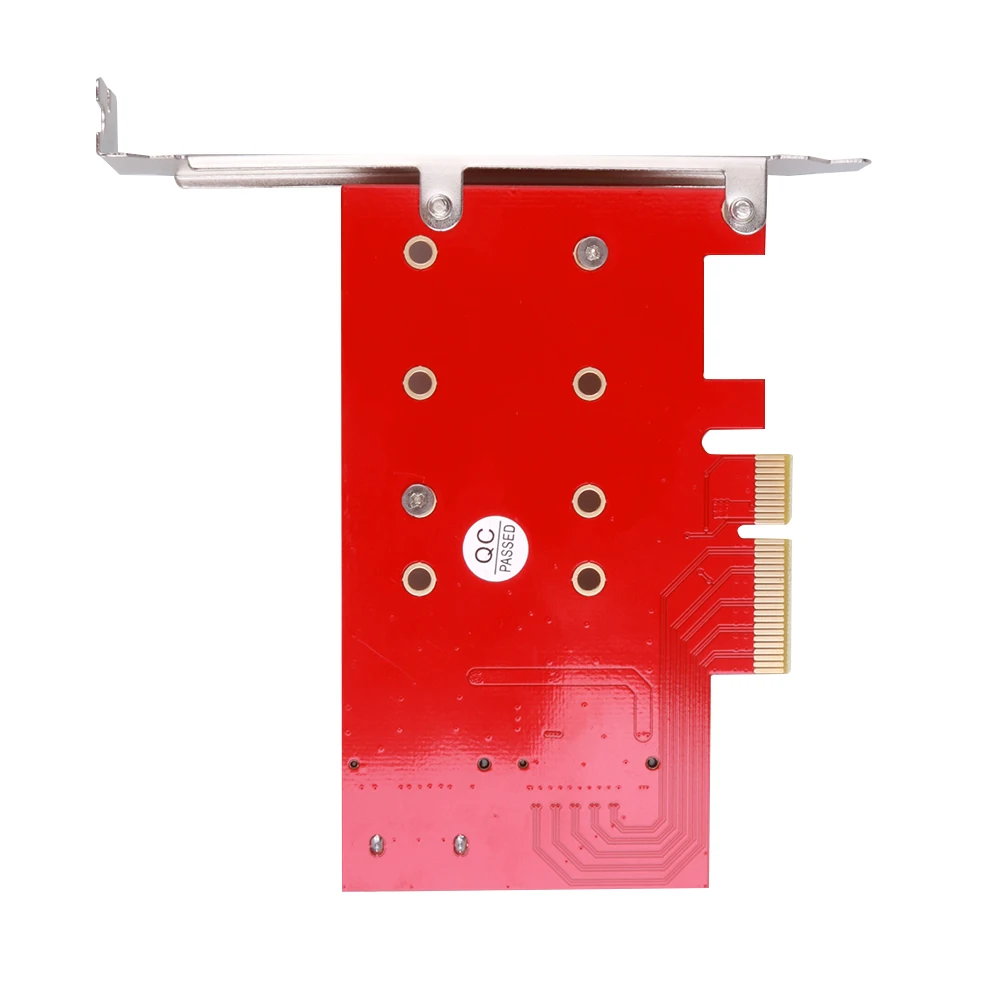

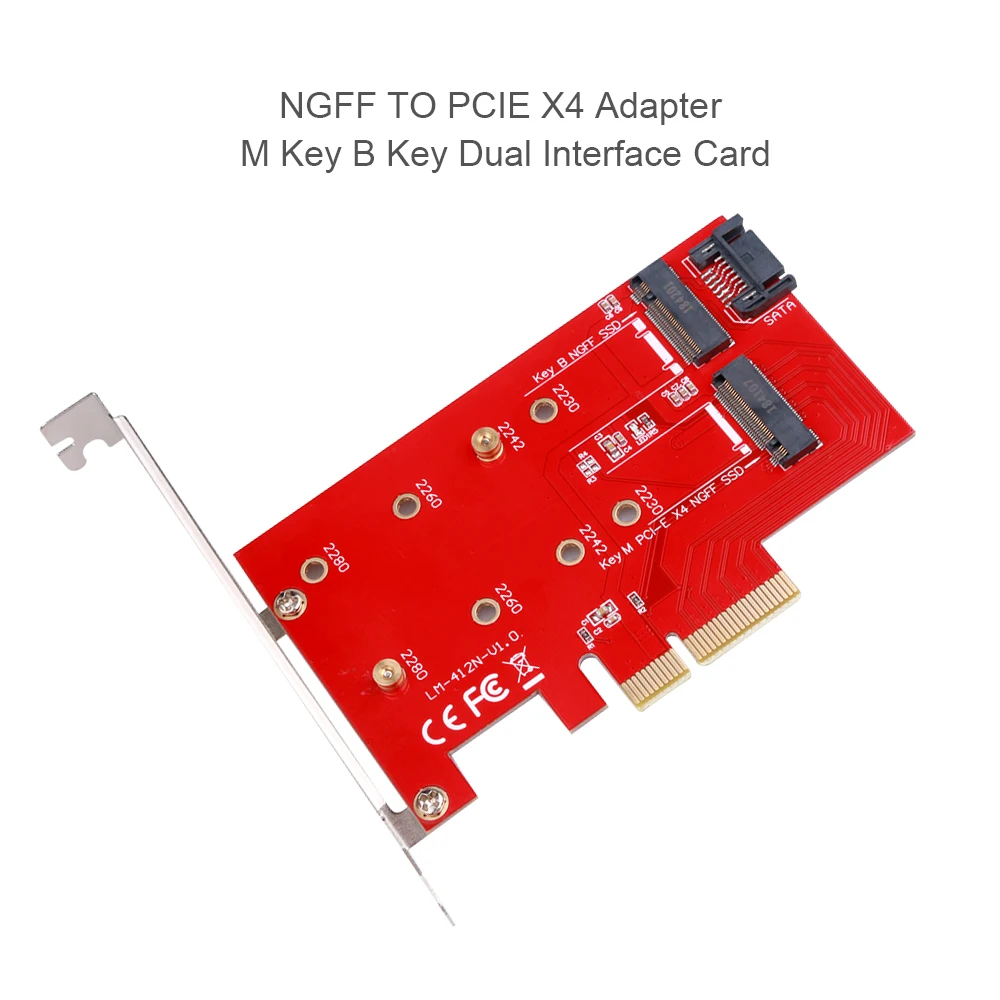

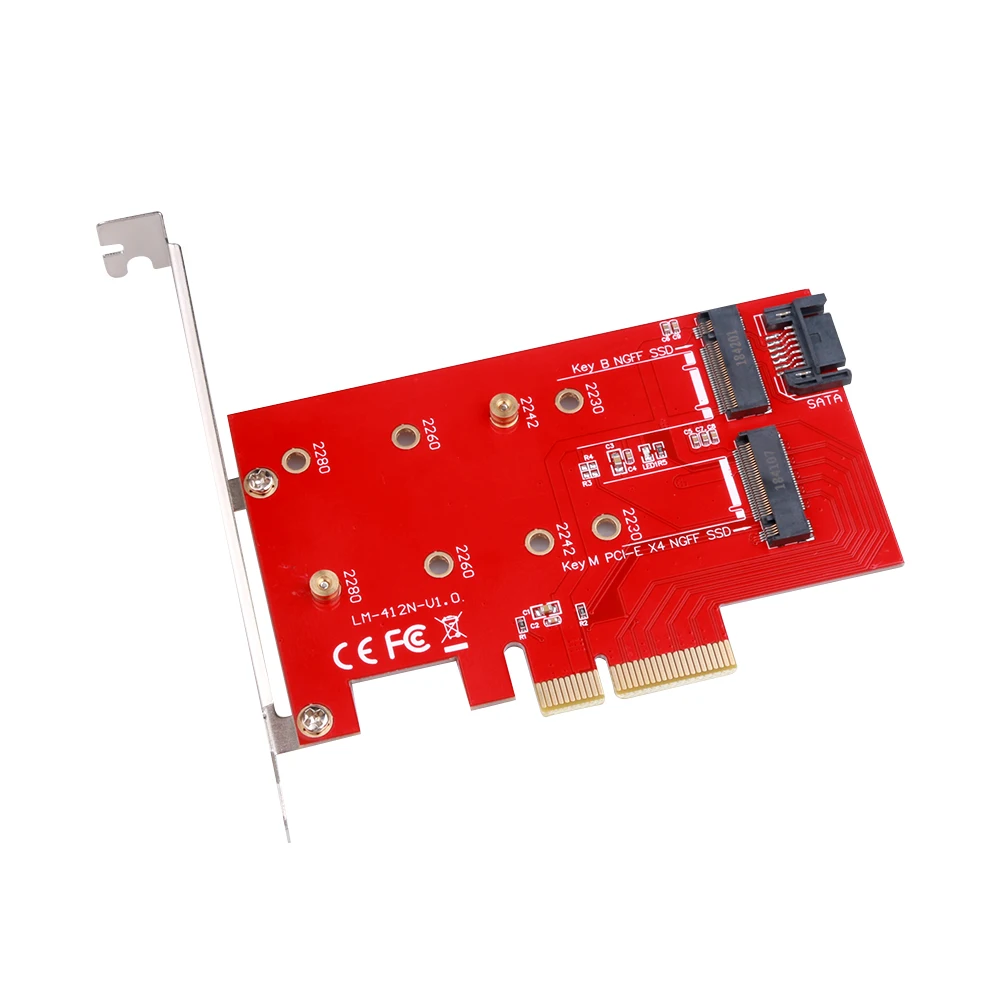

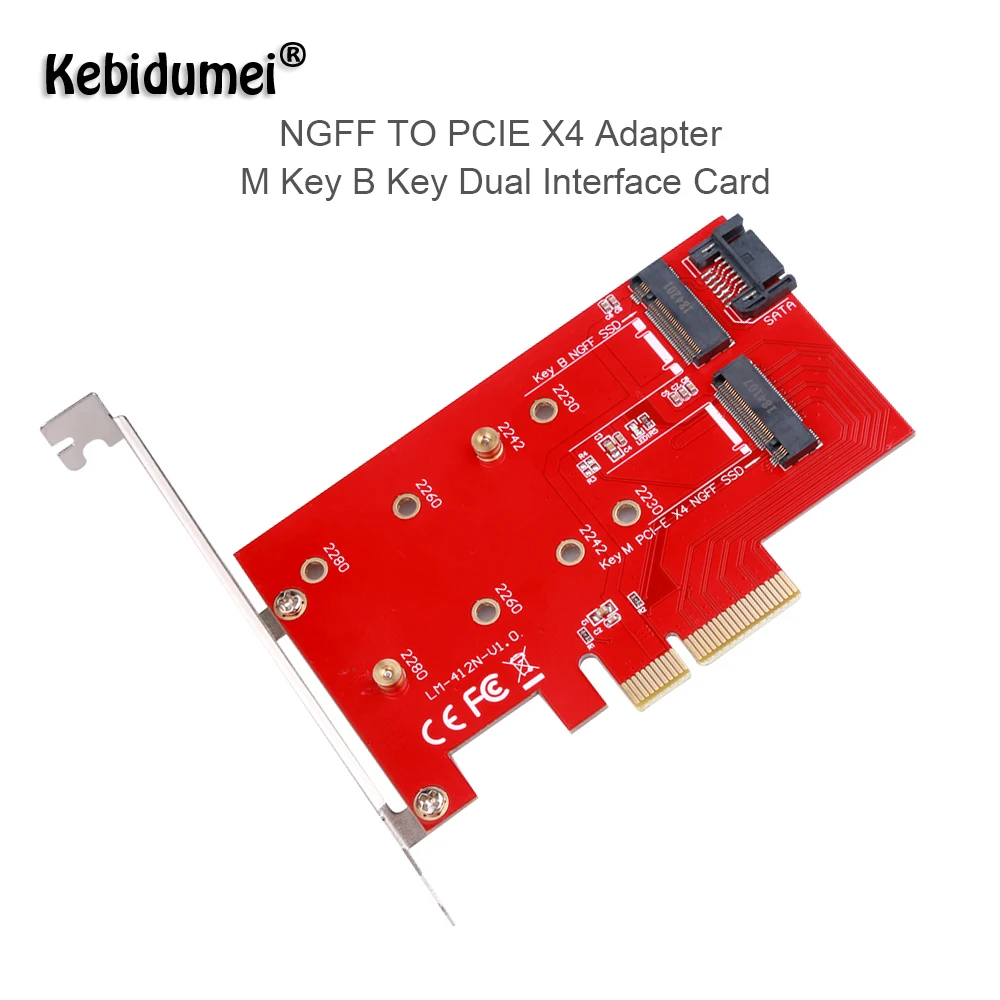

SSD NGFF To PCIE X4 Adapter M Key B Key Dual Interface Card M.2 NVMe SSD Support PCI Express 3.0 2230/2242/2260/2280

►Specification:
Product name: NVME Extended Dual Interface Adapter
Type: PCIE to M2 Adapter
Built-in Interface: M Key + B Key dual interface
Support Slots: PCI-E 3.0 X4 GEN3 (Compatible with X4 X8 X16 slot)
Support devices: PCI-E specification m.2 NVMe and SATA specification M.2 NGFF disk
Support system: Windows XP/Vista/7/8/10, Linux, Mac OS.

►Features:

M key M.2 NGFF SSD to PCI-E X4 adapter or B key  M.2 NGFF SSD to SATA adapter.
The speed and other properties is not changed, only change the interface type and without any software or drivers.
Support size: 22*30 mm, 22*42 mm, 22*60 mm, 22*80 mm M.2 NGFF SSD.
Macth with two kinds of Metal sheet ( length: 8 cm, 12 cm )
Compatible with any operating system ( On the premise of operating system must be compatible with your hard disk ).


About M.2 NGFF SSD interface standard:

Socket 2(B key 2 LANE):there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCI-E 2X(such as PX-AG128M6E/PX-AG256M6E/PX-AG512M6E/SD6PP4M models of SSD) two different transfer mode.
Socket 3(M key,4 LANE):PCI-E 4X(such as MZHPU128HCGM  MZHPU256HCGL and MZHPU512HCGL models of SSD) transfer mode.

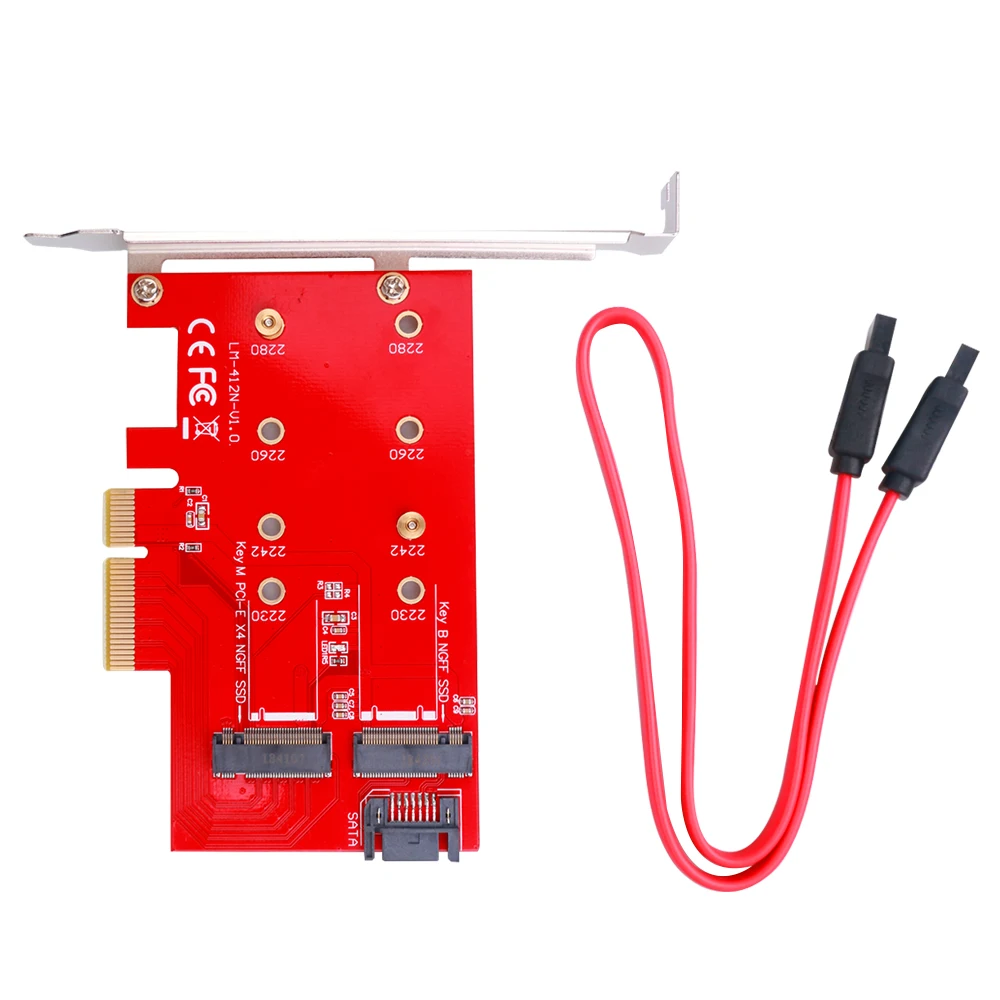

►Package Including:

1 x Adapter Card
