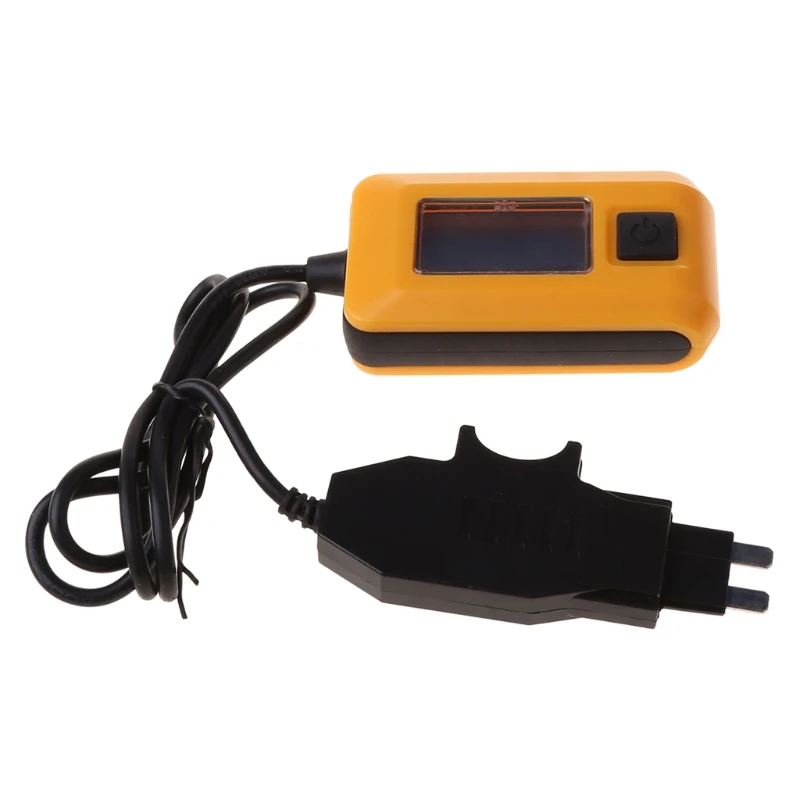

AE150 Car Auto Current Tester Multimeter Lamp Car Repair tool By Fuse Diagnostic Tool 12V 23A Measurement range 0.01A~19.99A

100% brand new and high quality
OOTDTY
Features:
The tester can be used to measure current at the fuse box of standard blade fuse. It is ideal for fault finding on automotive or commercial vehicle electrical circuit. Its feature is quick measurement and high accuracy. It is very easy to use and it can check the current through the fuse of the car.

Operation Instruction
1.Turn off the vehicles' engine.
2. Take out the fuse and put it in slot of the AE150. Please make sure the circuit protection is correct . (The detection fuse of the tester is 20A/48 V, standard type)
3. Insert the plug of the tester into the vehicle fuse socket.
4. If necessary, start the vehicle engine and energize the circuit first. Then turn on the detector by pressing the power switch
5.Under test, operate the circuit and the display will show the measured current.
6. Turn off the tester by pressing the power button again when you finish the measurement.

Specifications:
Measurement range: 0.01A~19.99A
Max load: 20A/48Vdc for max.10 secs.
Powered by a 23A 12V battery (not include battery )

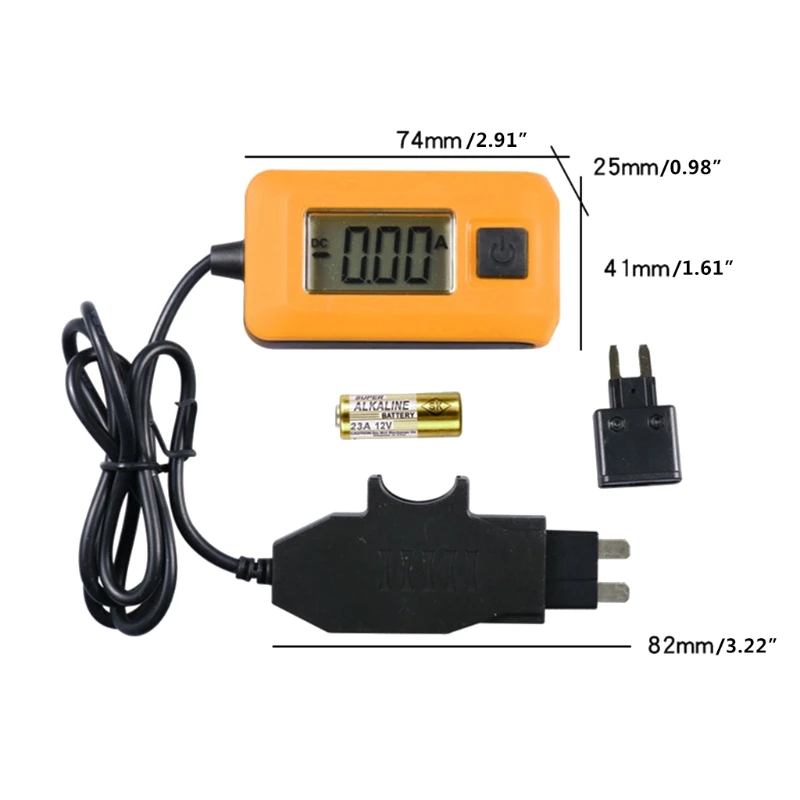

size: 74*41mm
material: plastic
Color: red
Quantity:1 pc


Note:
No retail package.
Transition: 1cm=10mm=0.39inch.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

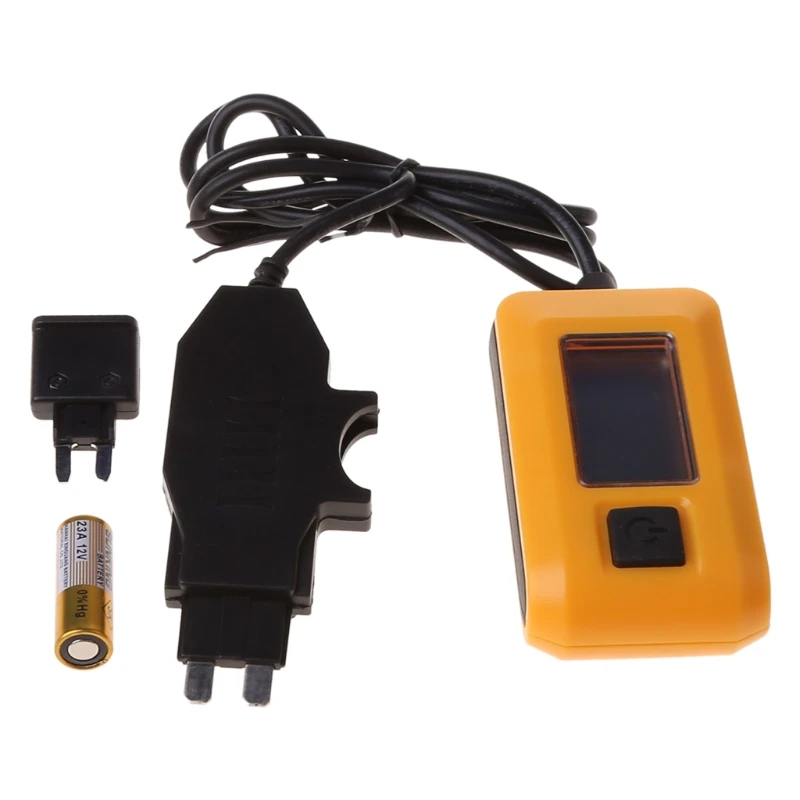

1 x Car Auto Current Tester(other accessories demo in the picture is not included.)
