Enter store- Description

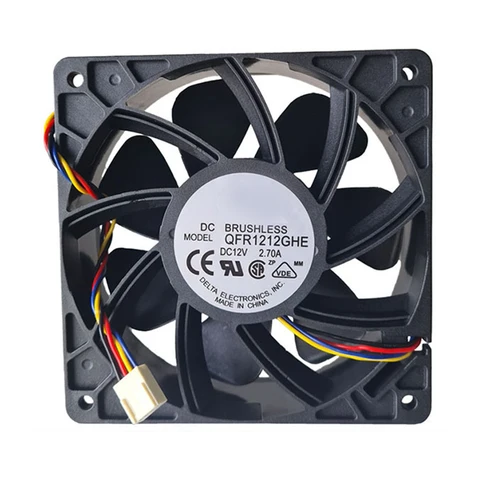

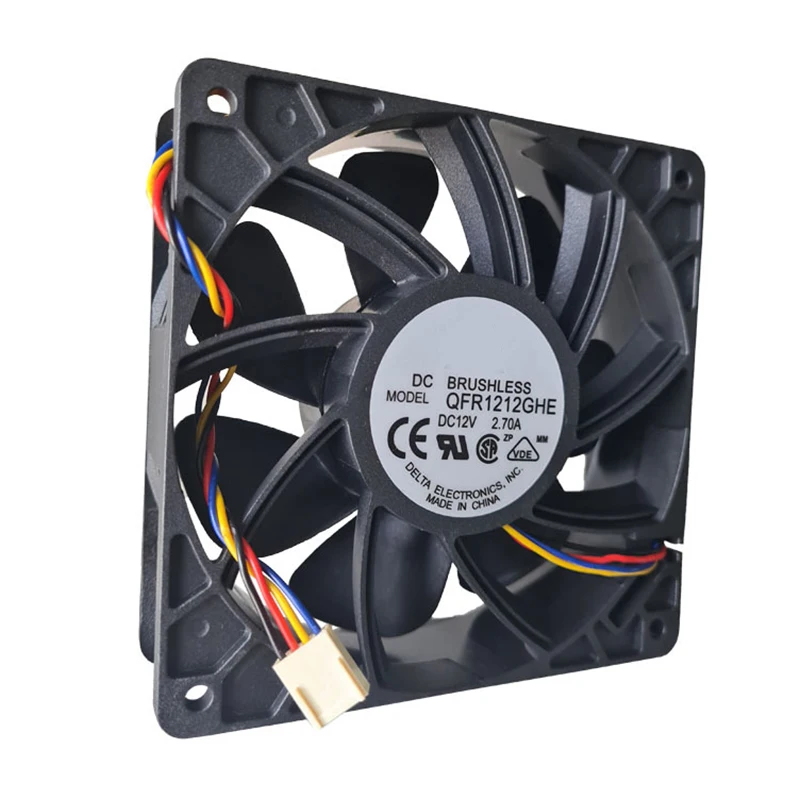

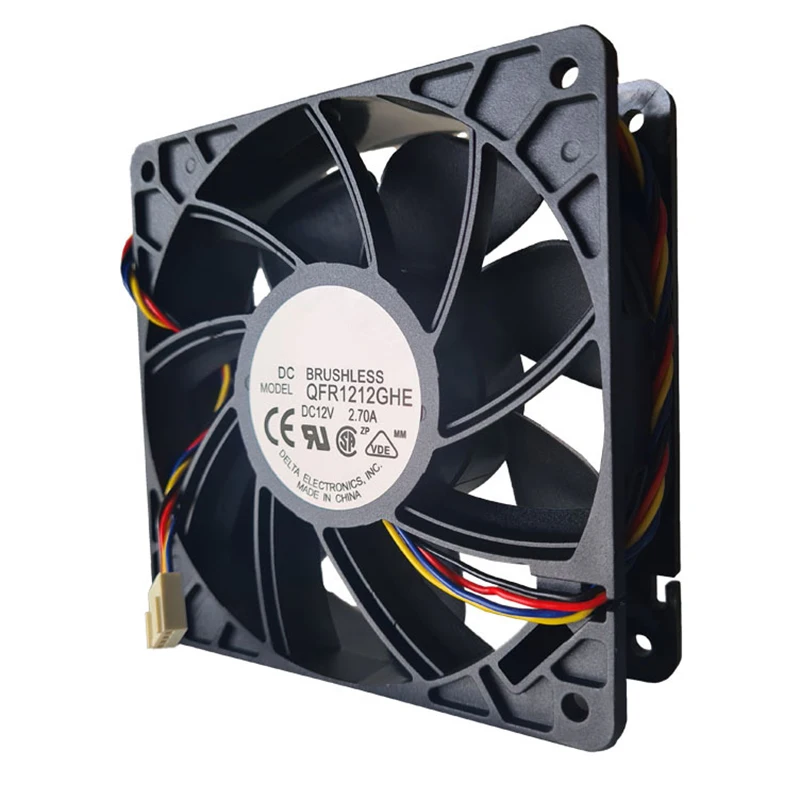

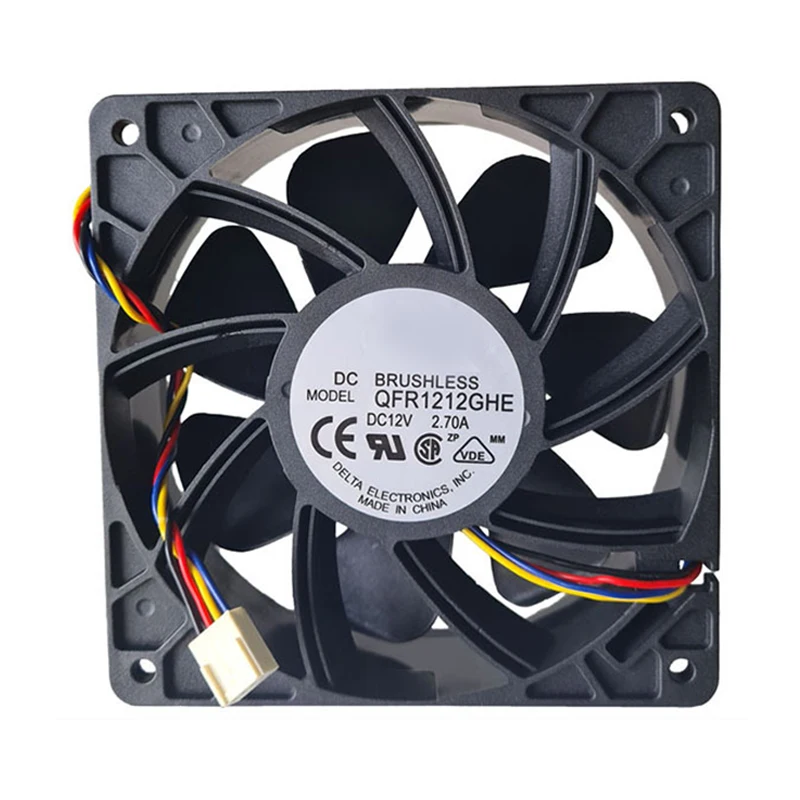

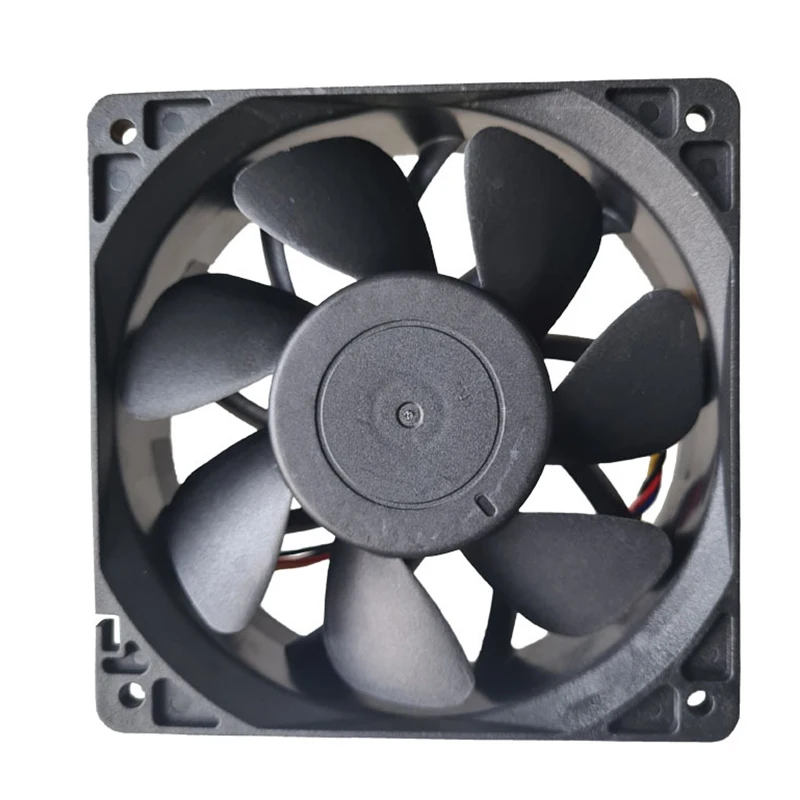

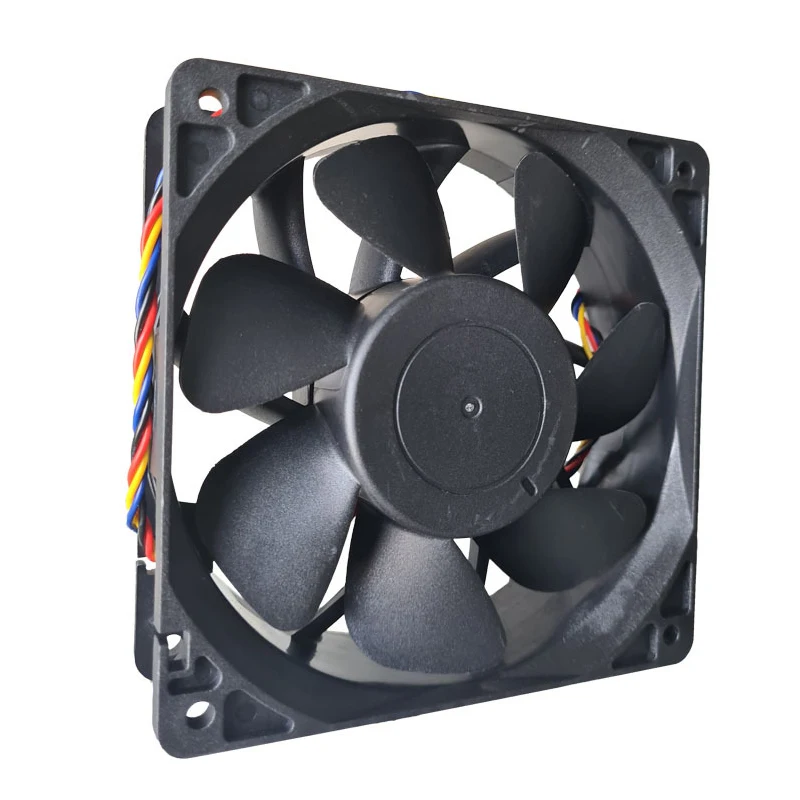

Brand: Delta DELTA
Model: QFR1212GHE
IBM Spare Part Number P/N: 74Y5220
Connector: 4 wires original server double connector
Size: 120*120*38mm
Voltage: DC 12V
Current: 2.70A
Speed: 6000RPM
Air volume: 210.38CFM
Wind pressure: 21.60mmH2O
Noise: 64dB-A
Bearing: High precision double ball bearing
Fan frame: one-shot injection molding, PBT + 30% glass fiber + VO flame retardant
Fan blade: one-shot injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation direction: counterclockwise when viewed from the direction of the fan blades
Operating temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Power supply range: plus or minus 15% of rated power supply
Insulation resistance: greater than 500 megohms
Withstand voltage: sink leakage current 0.5mA 500V/1 minute
Working life: 80,000 hours at ambient temperature of 25 degrees
Scope of application: workstation cooling / server CPU cooling
Package Contents:
Fan * 1PCS
protective net * 1PCS
Model: QFR1212GHE
IBM Spare Part Number P/N: 74Y5220
Connector: 4 wires original server double connector
Size: 120*120*38mm
Voltage: DC 12V
Current: 2.70A
Speed: 6000RPM
Air volume: 210.38CFM
Wind pressure: 21.60mmH2O
Noise: 64dB-A
Bearing: High precision double ball bearing
Fan frame: one-shot injection molding, PBT + 30% glass fiber + VO flame retardant
Fan blade: one-shot injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation direction: counterclockwise when viewed from the direction of the fan blades
Operating temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Power supply range: plus or minus 15% of rated power supply
Insulation resistance: greater than 500 megohms
Withstand voltage: sink leakage current 0.5mA 500V/1 minute
Working life: 80,000 hours at ambient temperature of 25 degrees
Scope of application: workstation cooling / server CPU cooling
Package Contents:
Fan * 1PCS
protective net * 1PCS
Sales pricing
| Logistics mode | Estimated limitation of transportation (working day) | Gross freight | Other expenses | Unit price | Quantum of output | Suggested retail price |
|---|
* Product total: product sales price * product quantity + total freight
* Suggested retail price: total amount of products/(1 - percentage of third-party platform expenses - percentage of profits)
* Other fees: suggested retail price * percentage of third-party platform fees
* The freight is empty because it is matched by postcode. Please input the exact postcode and re-estimate the freight. If there is still no logistics freight after input, the logistics is not available.
Logistics price list
| Logistics mode | Estimated limitation of transportation (working day) | Country | District | Postcode | Weight(kg) | Gross freight |
|---|---|---|---|---|---|---|
| No transportation available~ | ||||||
$13.49
Package length, width, height：-
Product weight：-
Net weight：-
Product code：GBY537705217410
Quantity：
Stock：10
Freight：
$0.00
shipping free
