12V MP3 Module WMA MP5 Decoder Board 1280x720 2-Channel Output Wireless Bluetooth5.0 Audio Module Support e-book USB TF Radio

  • Spot goods
  • Login visible 1 Piece+
  • Login visible 3 Piece+
  • Login visible 10 Piece+

  • Item ID:GBY5377052199280101
  • Color: -
  • Size: -
  • Description
  • Cost estimate
  • Logistics price (one ticket per ticket)

kebidu 5V 12V MP3 Module WMA MP5 Decoder Board 1280x720 2-Channel Output Wireless Bluetooth5.0 Audio Module Support e-book USB TF Radio






QQ截图20200714162013

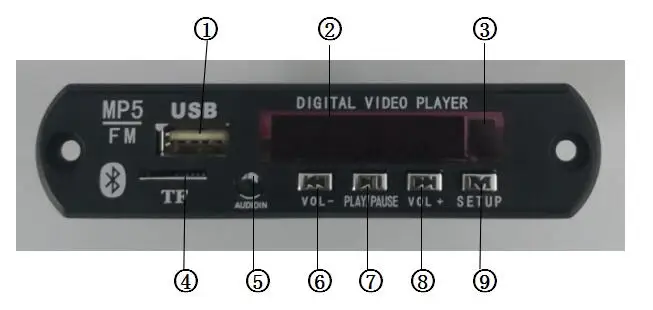

1 USB interface: connect U disk (maximum support 32GB,not included)

2 LED: digital screen display, showing red

3 Infrared receiver module

4 TF interface: connect TF memory card (maximum support 32GB,not included)

5 AUX interface: audio input interface

6 VOL-: short press is to select the previous song; long press is to decrease the volume

7 PLAY/PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station

8 VOL+: short press is to select the next song; long press is to increase the volume

9 MODE: USB/TF/FM/AUX/BLUETOOTH voice switching

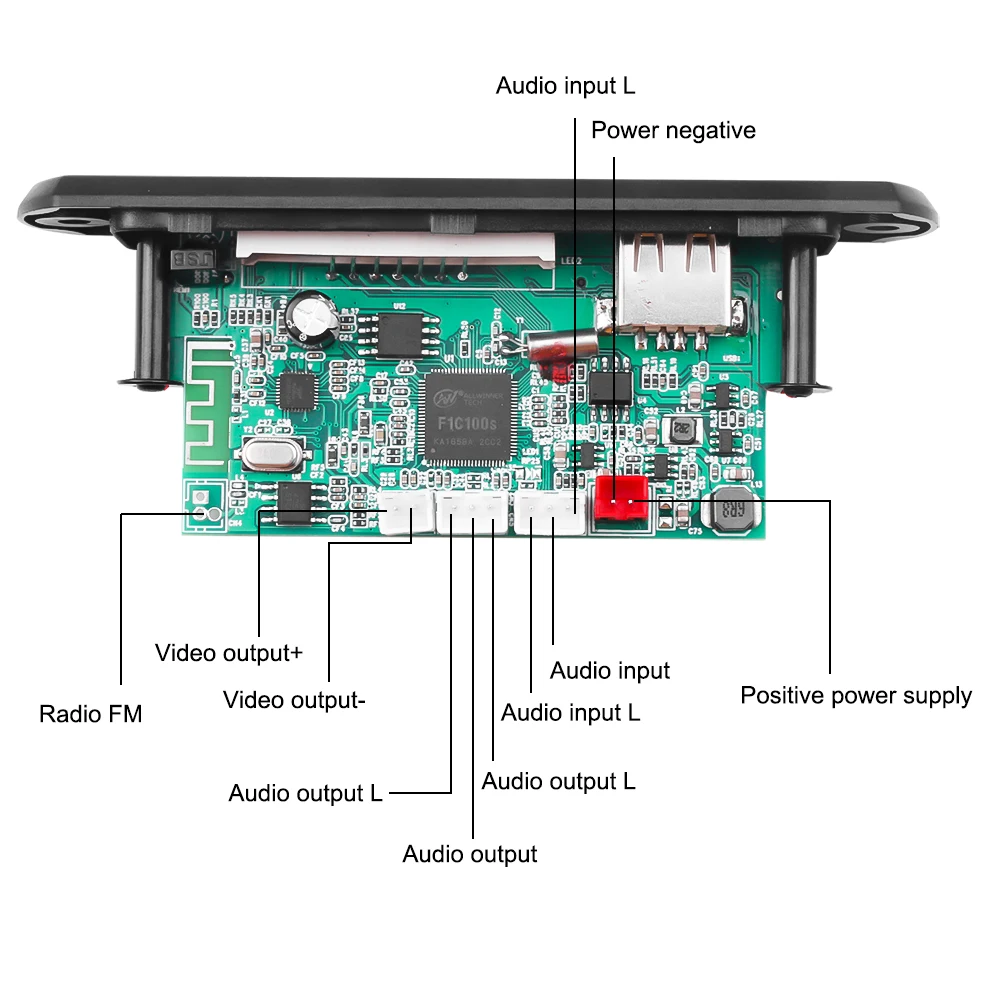

Video master IC: for C100S,

Decoding master IC: AC6926

Bluetooth IC: AC6926 Bluetooth version is 5.0

Play video formats: RM, RMVB, DVD, SVCD, VCD, DVCD, DVIX, MPEG4, AVI, VOB, etc.;

Play audio format: MP3, WMA, HDCD; OGG, FLAC, ACC, APE

Support picture format: JPEG, BMP,  PICTURE, CDG;

Video output support: CVBS

Audio output support: stereo (R/L)

Power supply selection: voltage 5V or 12V (can be selected), the minimum current is 2A (for professional smooth operation of the product, please choose a professional matching power supply);

Support HD video resolution (1280*720; 1920*1080)

Support e-book function to easily browse TXT text

Multiple voice-over languages (English, French, Portuguese, German, Danish, etc.),

Radio FM frequency: 87.5-107.5 MHZ

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 5V or 12V (optional)

About the structure: Panel size: 107*25 MM, the two corners of the panel and the position of the screw holes, then the cover cover surface, the depth of the board is 40 MM

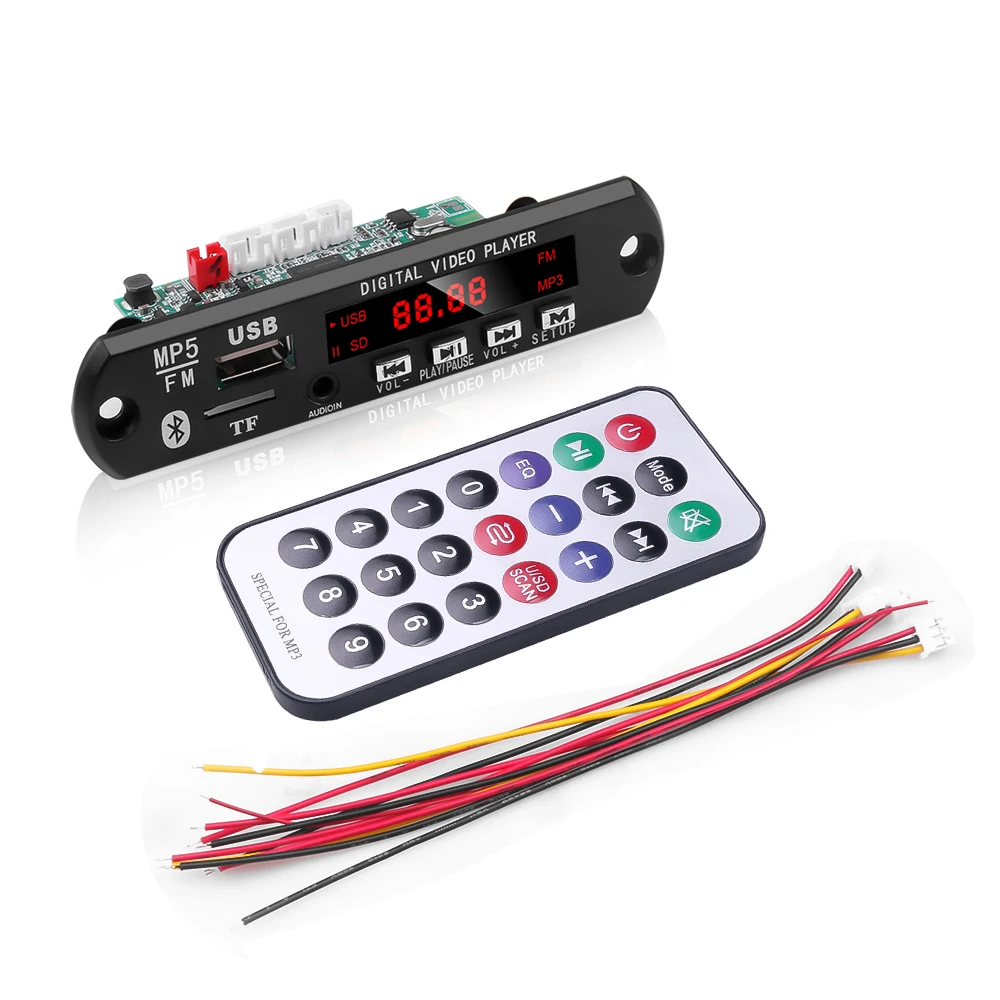

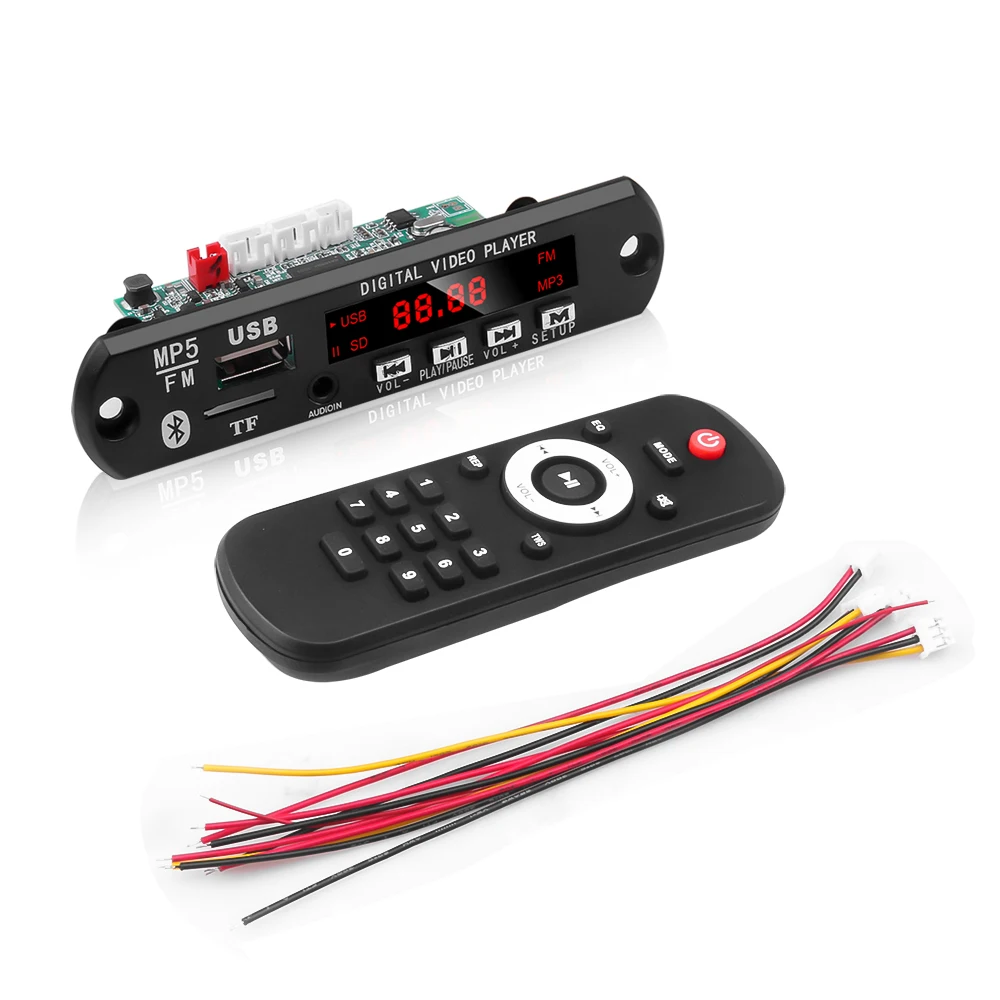

Package included:

1 x MP3 WMA WAV Decoder Board

1 x Remote control (without batteries)

1 x Cables




KIK000110 (3)KIK000110 (7)KIK000110 (1)KIK000110 (2)KIK000110 (6)KIK000110 (8)KIK000110-S (7)KIK000110-S (8)KIK000110 (4)KIK000110 (5)
