Baffled Oil Catch Can Tank Reservoir With Removable Darin Vavle Fuel Oil Seperator Air Car Racing Refitting Parts

Aluminium Baffled Oil Catch Can Tank Reservoir With Removable Darin Vavle Fuel Oil Seperator Air Car Racing Refitting Parts.

Please note:
1. Please check the contents of the baffled oil catch can every 1500KM,to make sure the contents of the can will not rise over the internal baffle.
2. Oil accumulation in can will be vary with driving conditions and ambient temperatures.
3. The filter can be removable and we suggest you clean it every 5000KM.

Packing List:

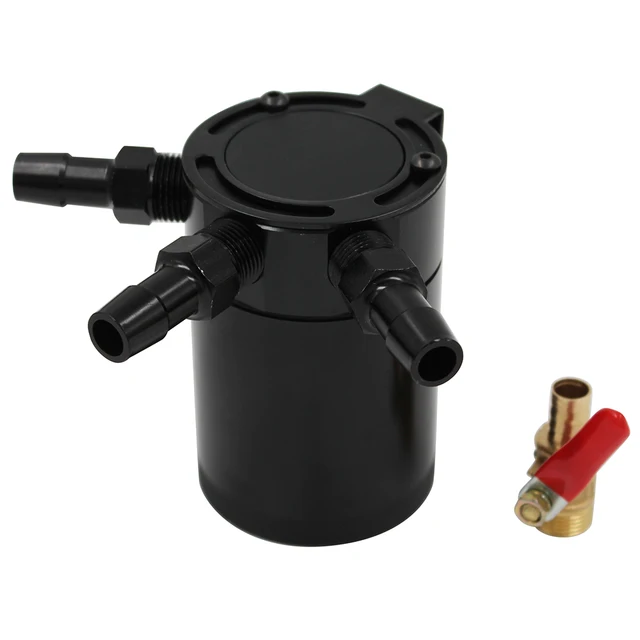

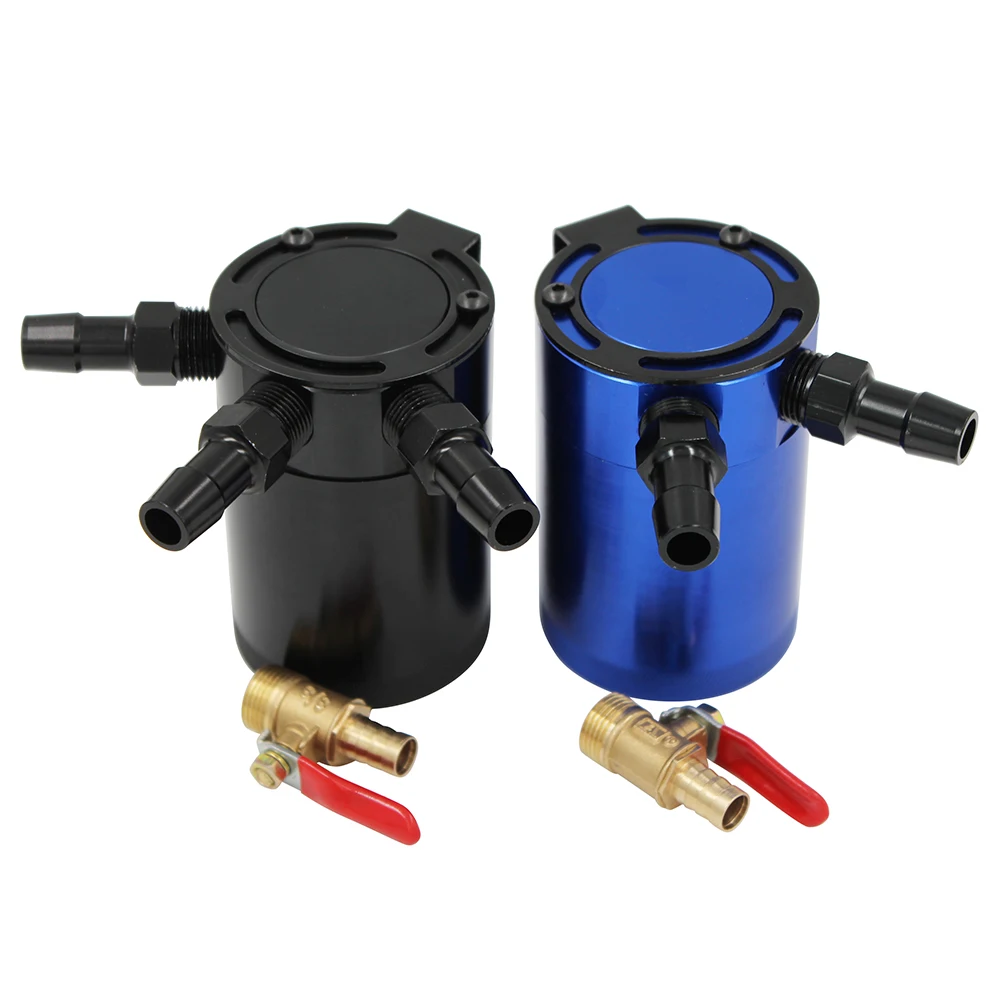

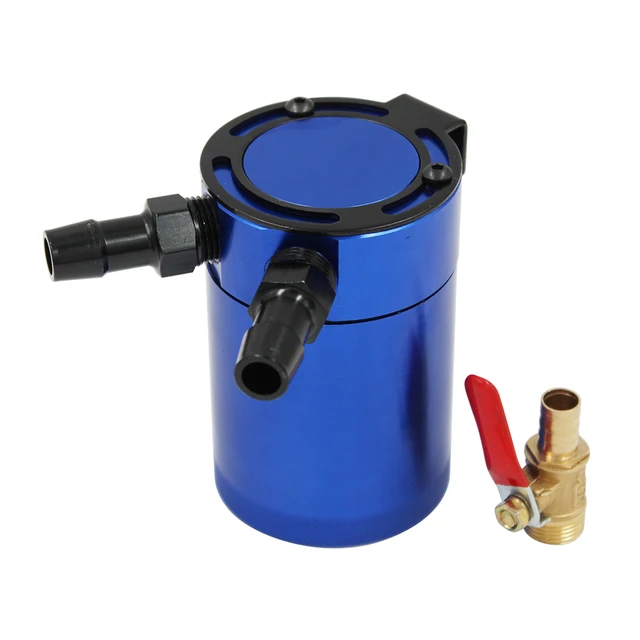

1xAnodized 6061 Aluminum Oil Catch Tank with neccessary parts inside.
2x or 3x Barbed Fittings Mouth,ID 10mm(0.4"), ID 13mm(1/2")

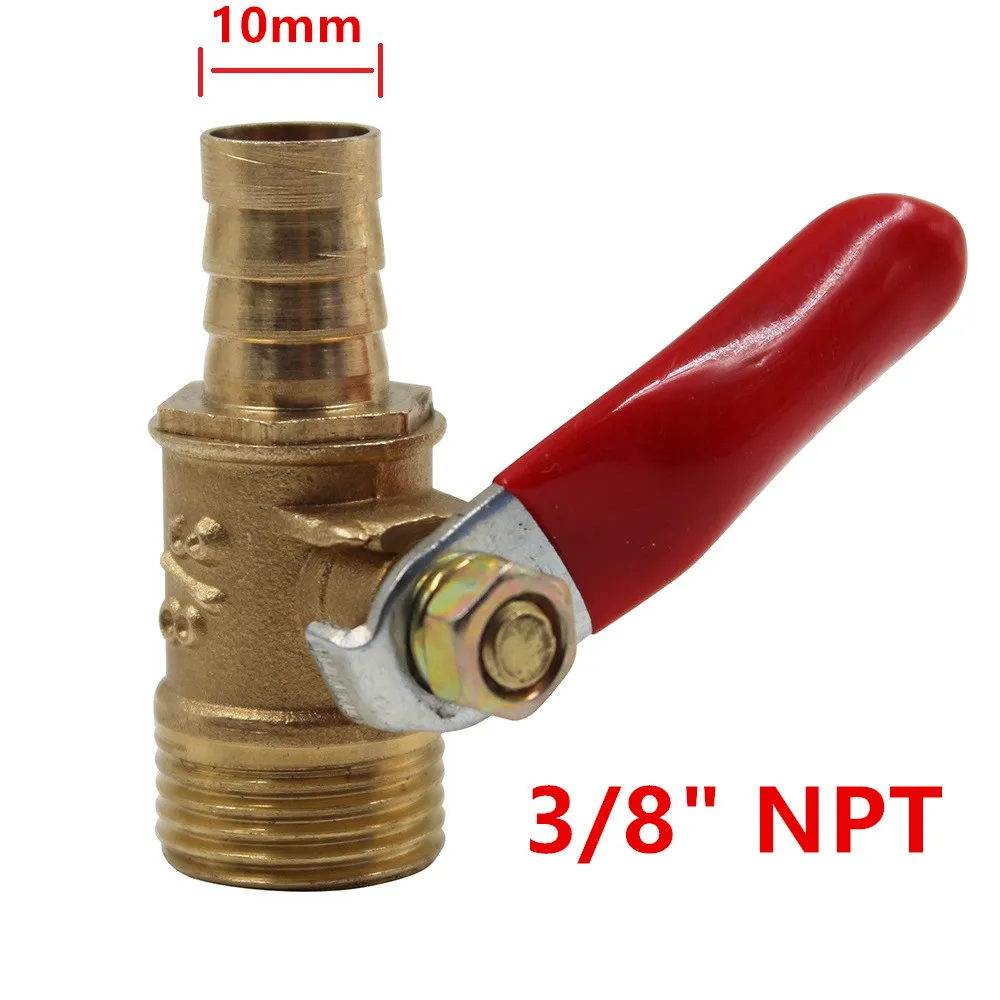

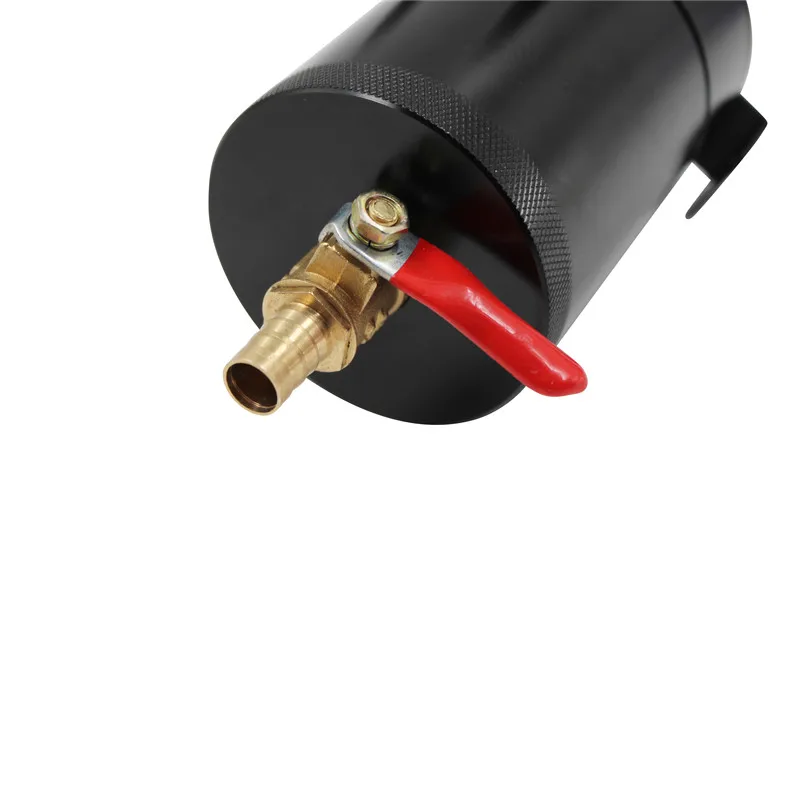

1x 3/8" NPT drain vavle,outlet 10mm(0.4")

Specification:

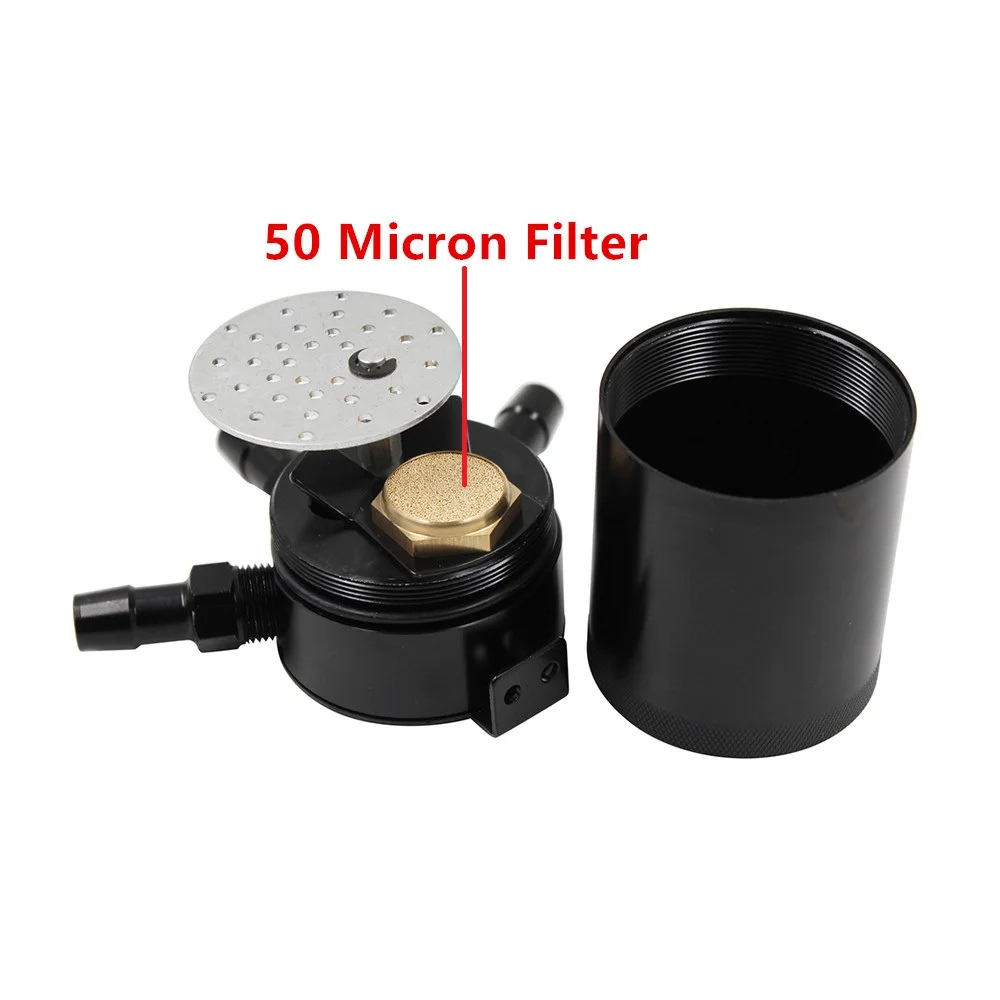

-Separates oil particles from PCV/CCV air using 50 micron bronze filter
-100% billet 6061 aluminum sealed can
-Defends intercooler, intake system, and essential components from oil blow-by
-Helps maintain proper octane levels to reduce potential detonation
-Features one inlet and one outlet
-Filter and can are both fully serviceable
-Safe for pressurized applications

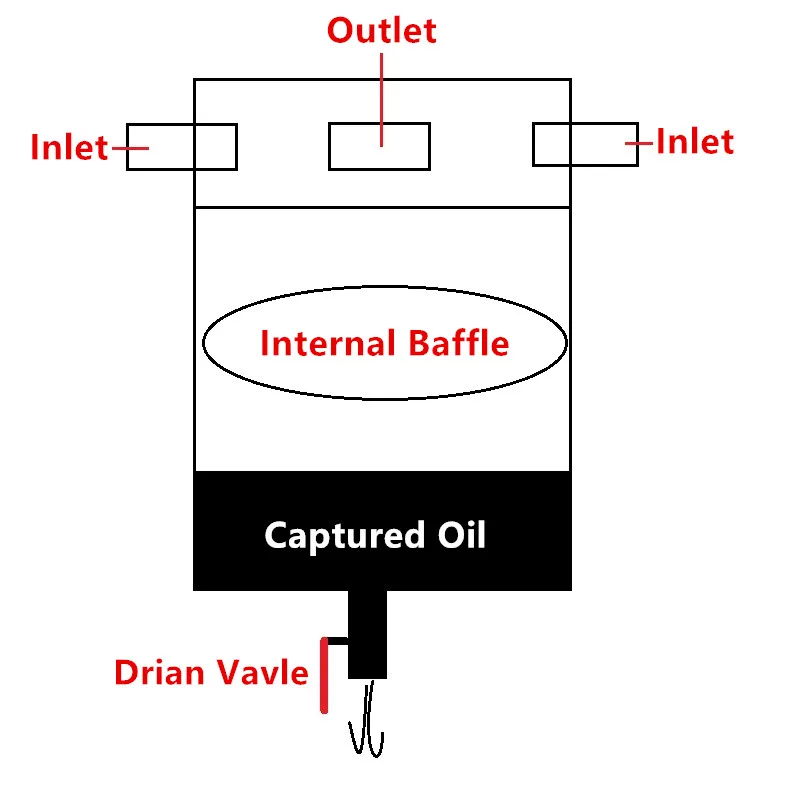

-Internal air diverter turbulates air longer to improve oil separation
-Includes 2 plastic barbed 1/2" hose fittings
-Universal mounting bracket for different configurations

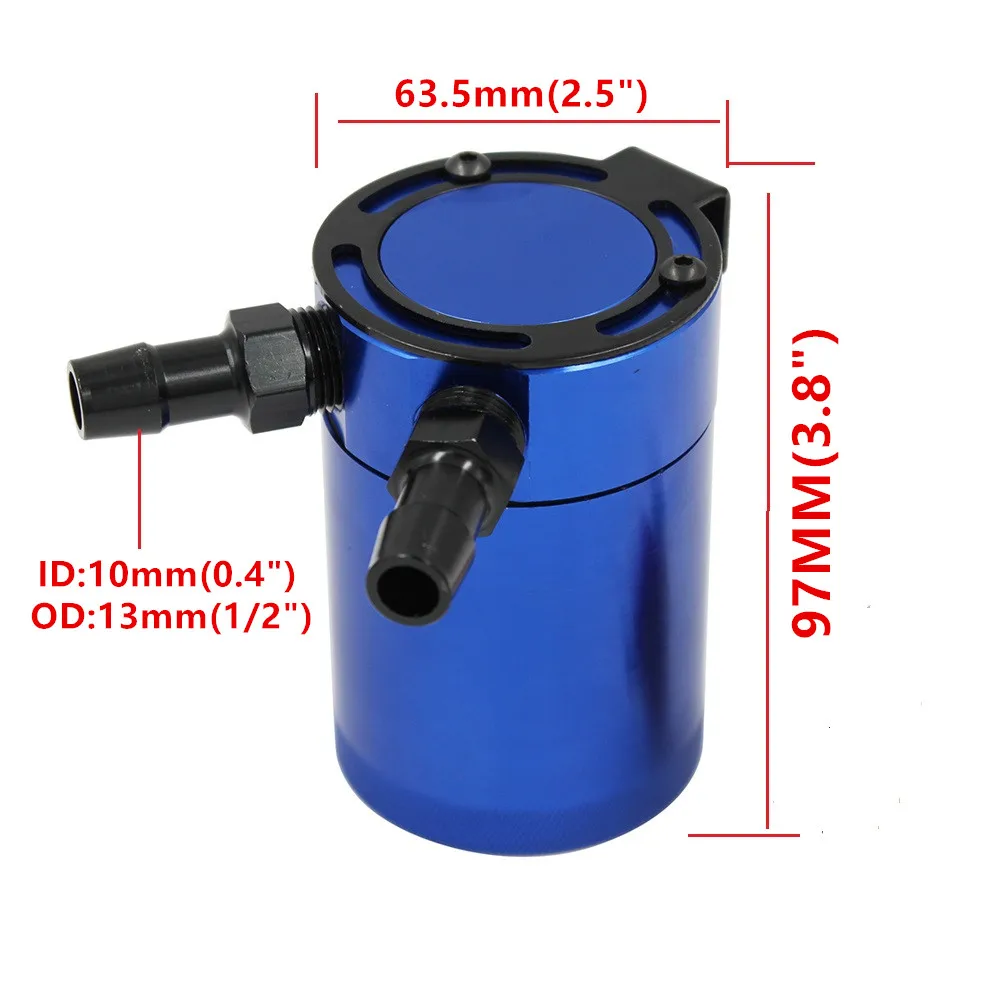

-Overall Height: 3.80" (without fittings)
-Overall Diameter: 2.50" (without fittings)
-Inlet: 3/8" NPT
-Outlet: 3/8" NPT
-Drain Plug Thread Size: 3/8" NPT
-Capacity: 2 fl oz.

Please check photos in description for detailed dimension of it, thanks.
