PzzPss 3G HDMI-compatible to SDI Converter SDI Adapter Audio HD-SDI/3G-SDI Adapter BNC 1080P DAC Converter for Monitor HDTV

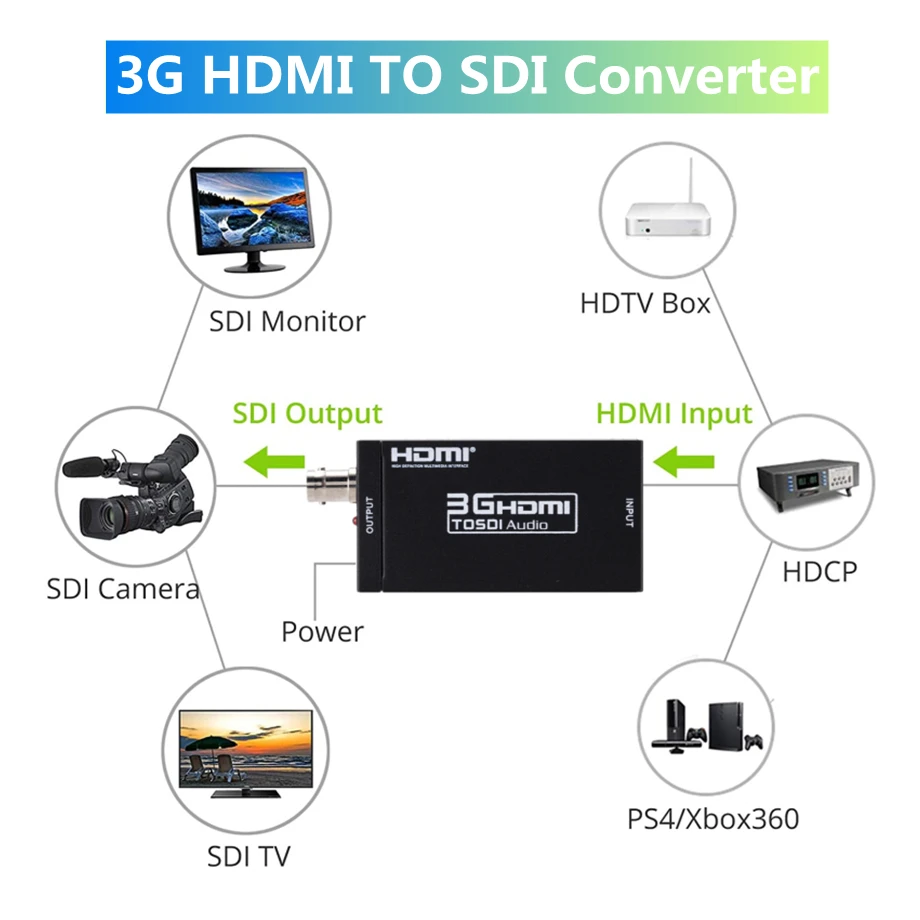

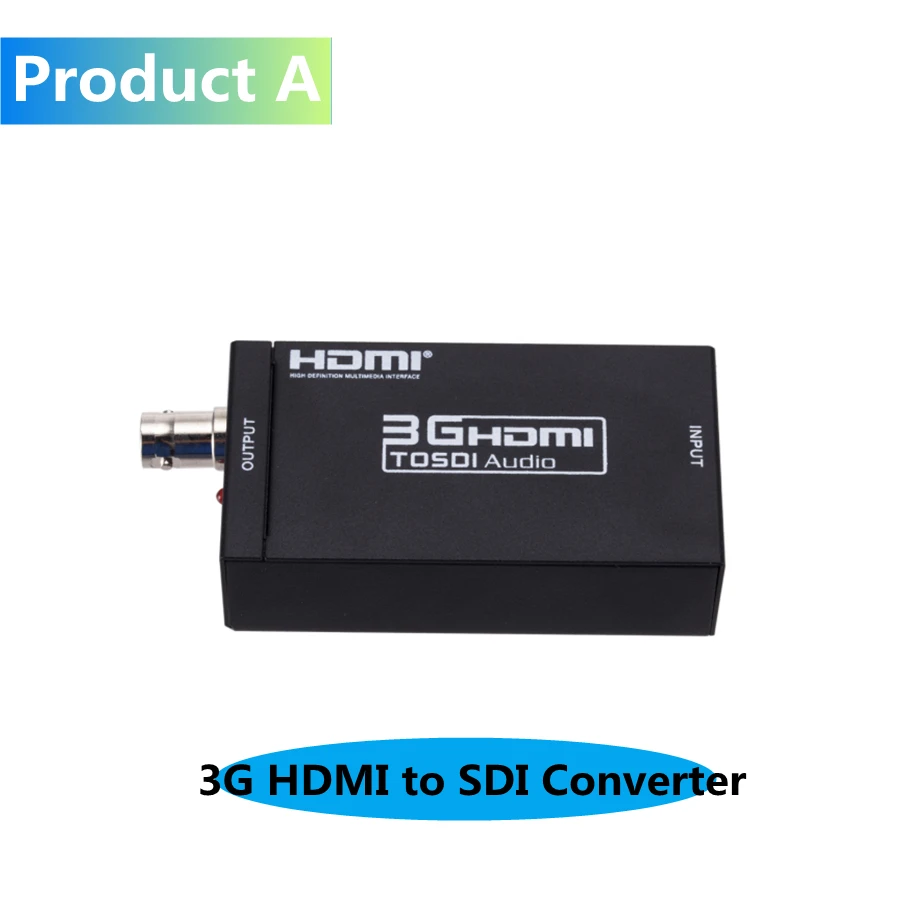

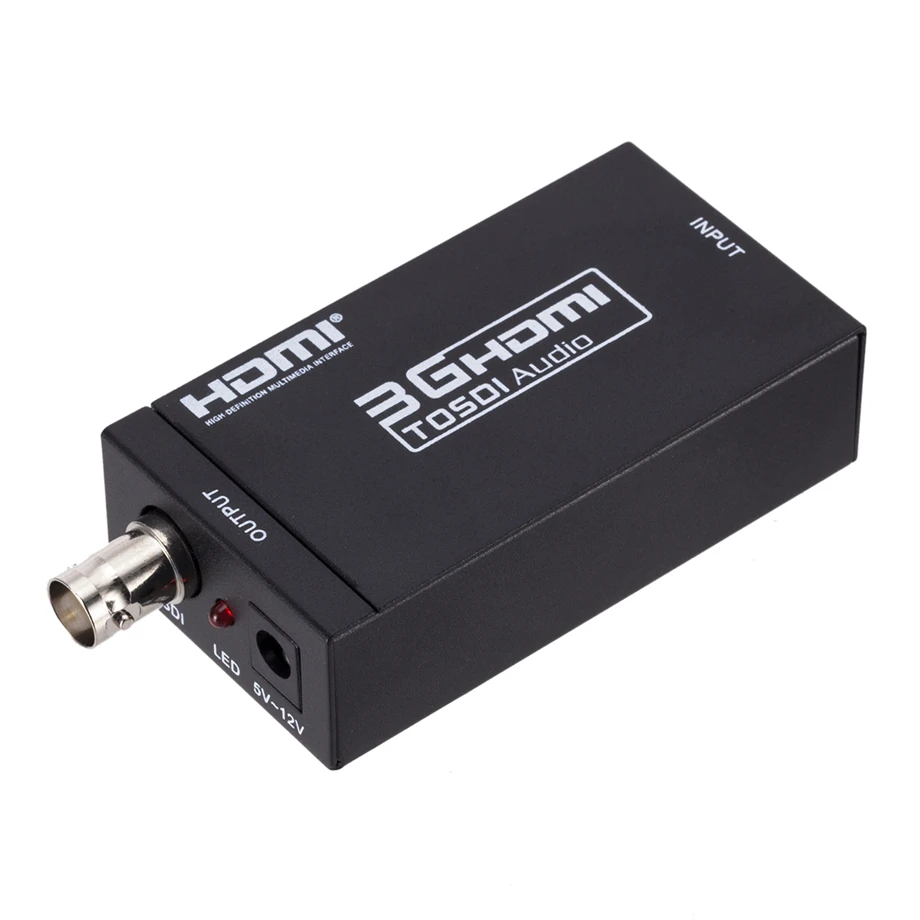

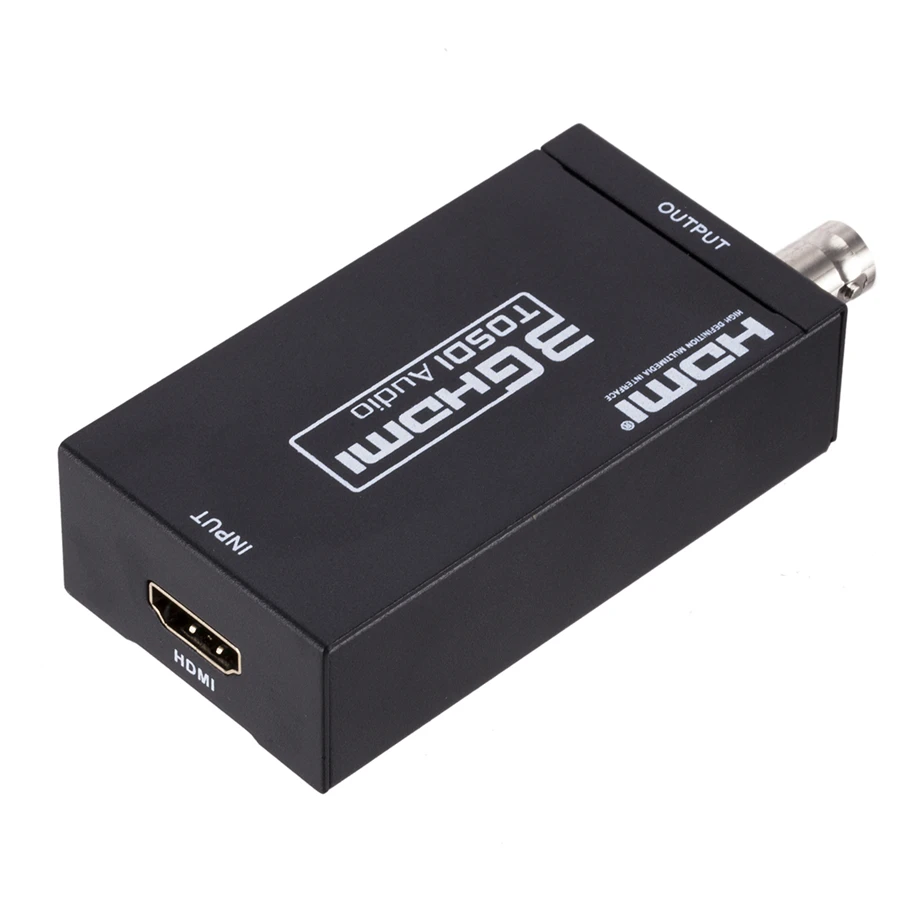

Product A : 3G HDMI to SDI Converter
Features:
Input:1*HDMI
Output:1*SDI
Input/Outputresolution:480i,576i,720p50/60,1080p24/25/30,1080i50/60,1080p50/60
Power supply: DC5V
Power Consumption (Max):5W
Auto video mode detection(3G/HD/SD).
Connect with other units(SDI to HDMI) to extend your signal over long distances.
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
Supports signal transmission distances up to 300M for SD signals, 200 for HD signal and 100M for 3G signal.

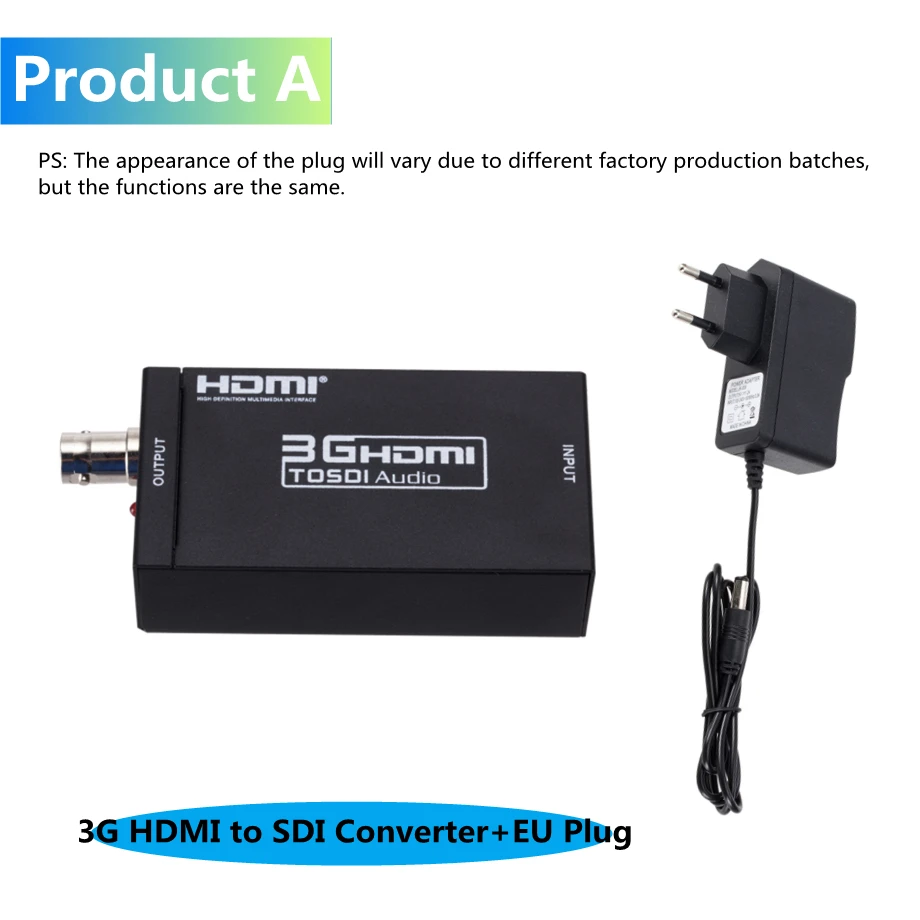

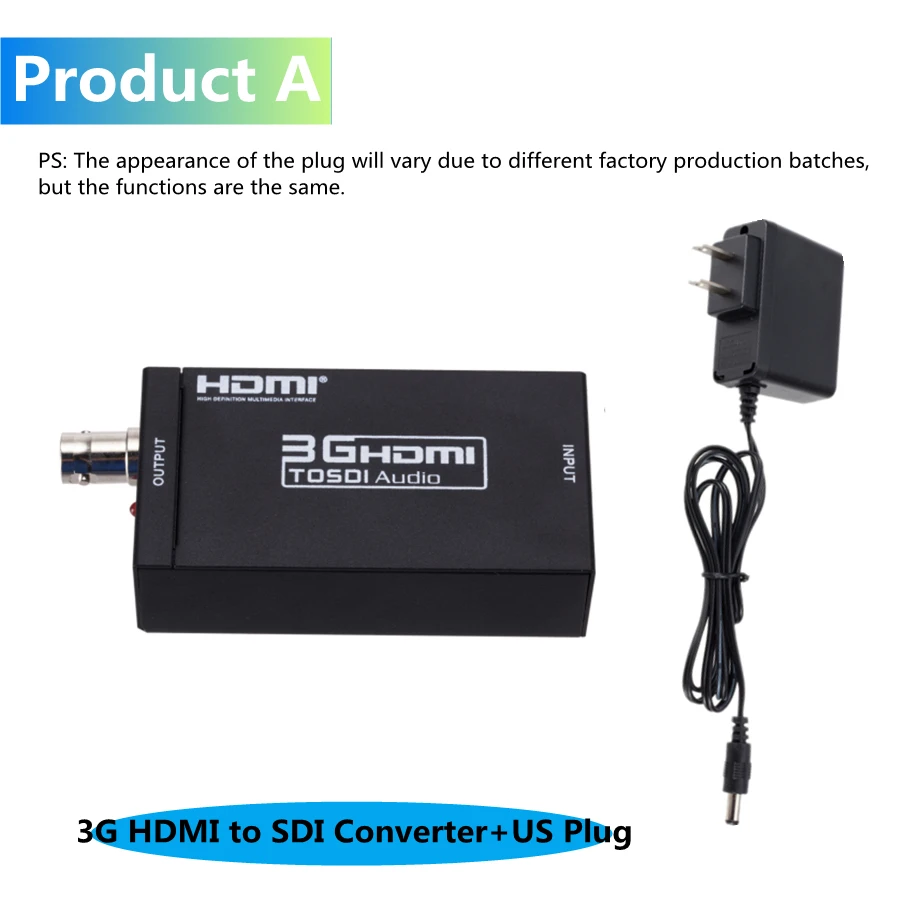

Package:

1* 3G HDMI to SDI Converter
1* EU/US DC Power cable (Optional, if you want UK and AU plugs, you can contact us first)
1* User Manual

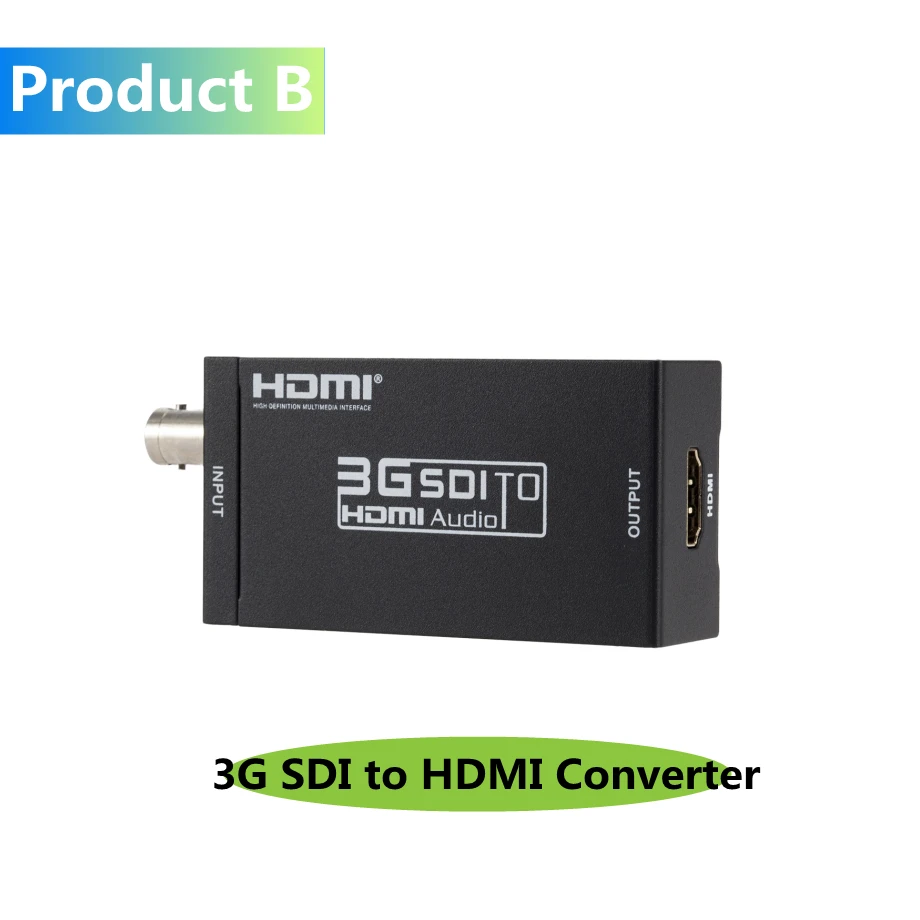

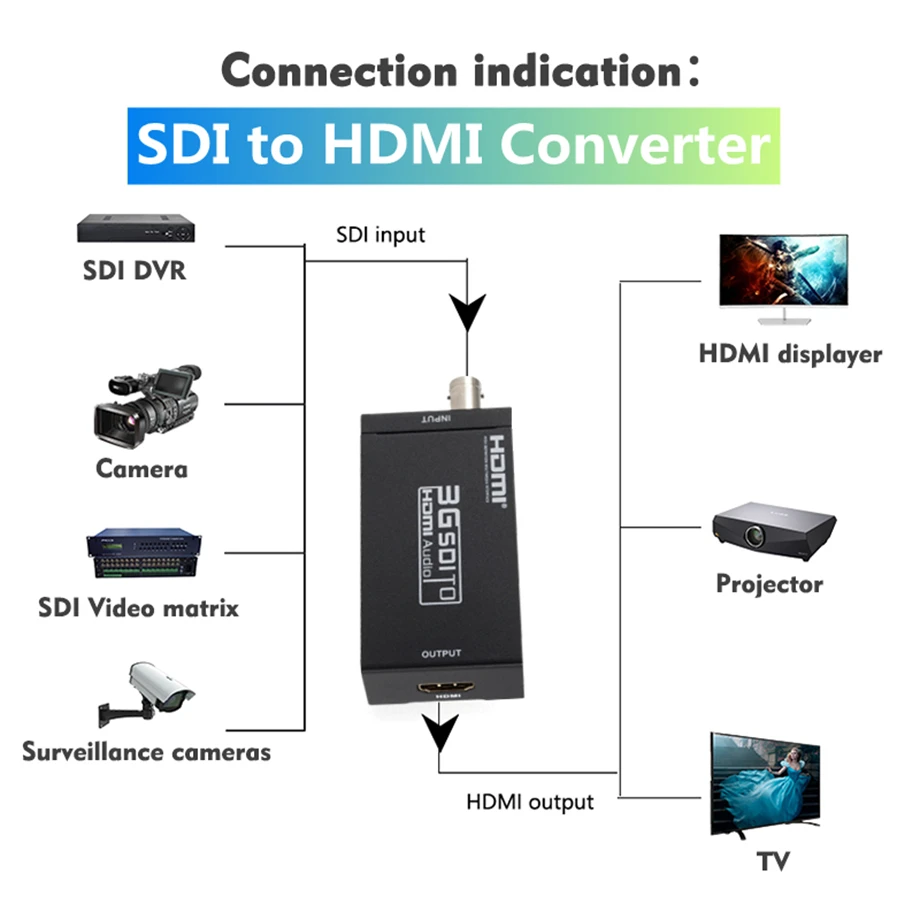

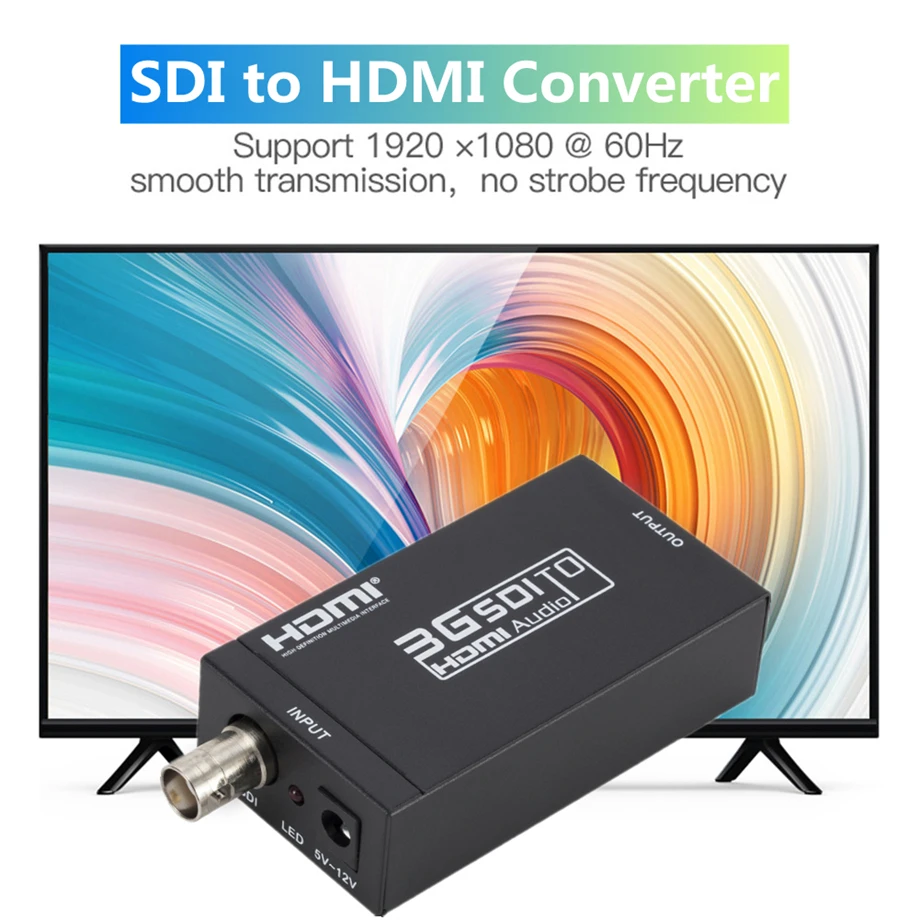

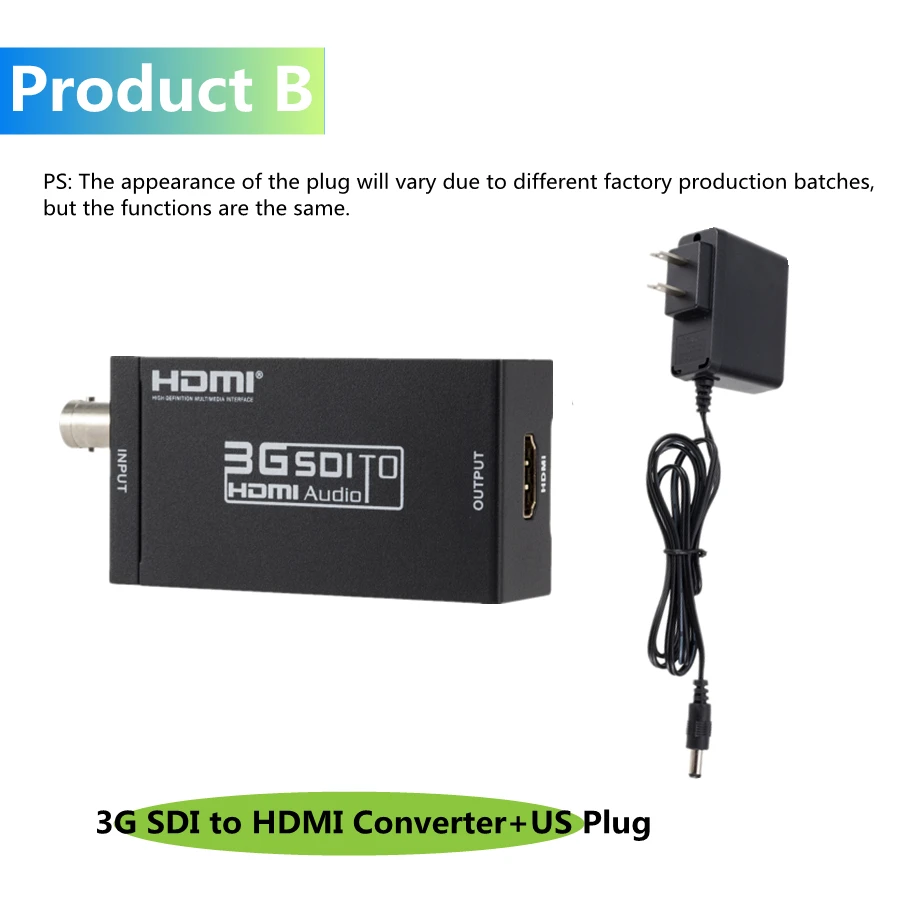

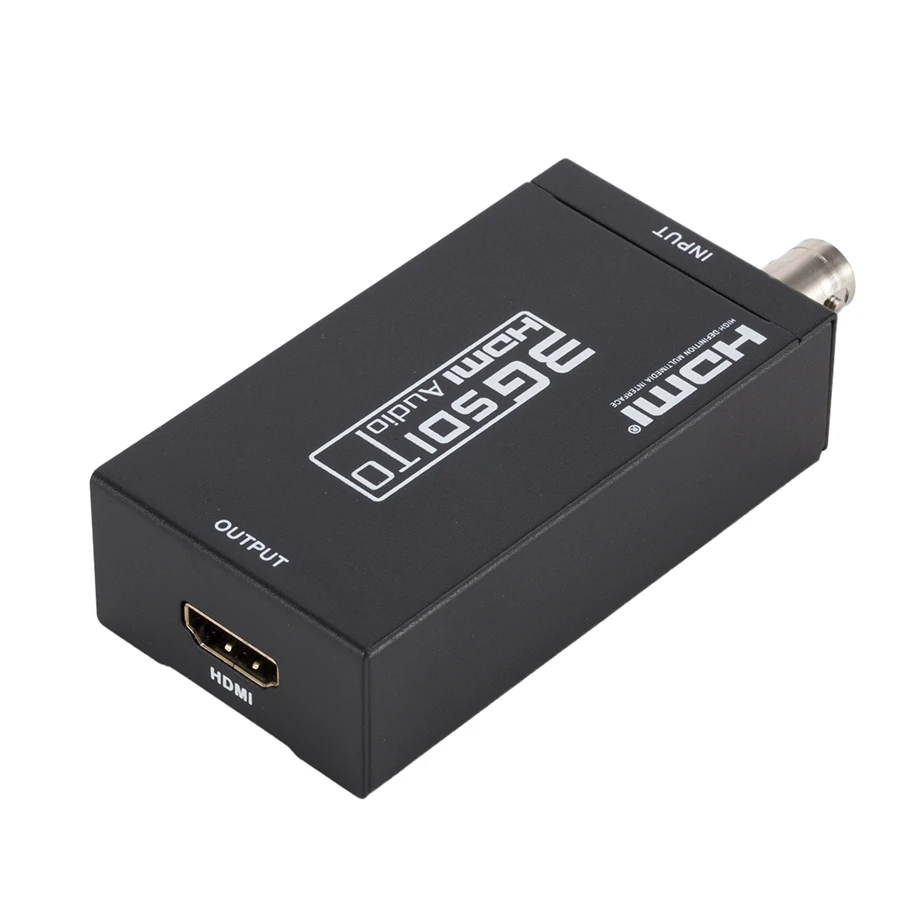

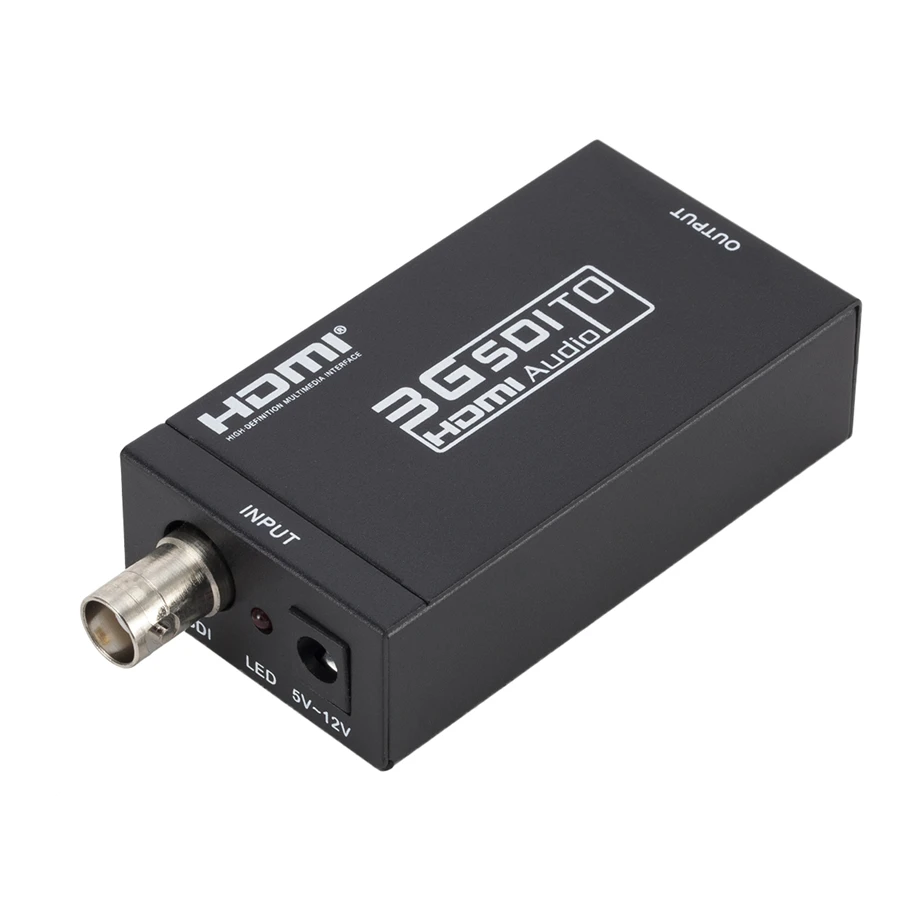

Product B : 3G SDI to HDMI Converter



Feature:

1.This SDI to HDMI converter support full HD 1920*1080P,clear and beautiful image,which can present details.

2.Conversion from SMPTE 425M level B to Level A 1080p 50/60 4:2:2 10-bit.

3.Adopt pure hardware technology processing,which can detect different SDI signals automatically.

4.Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s.

5.Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C.

6.Connect with other units to extend your signal over long distances.


Specification:

Power Supply: DC 5V -12V

Power Consumption (Max): 5W

Input port: 1*SDI (HD 3G-SDI)

Output port: 1 * HDMI

SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s.

In/Output Resolution: 720p,50,60, 1080i,50/60 1080p24/25/30/50/60.

ESD Protection Human body model: ±8kV (air-gap discharge), ±4kV (contact discharge).

Relative Humidity:20 ~ 90% RH (Non-condensing)

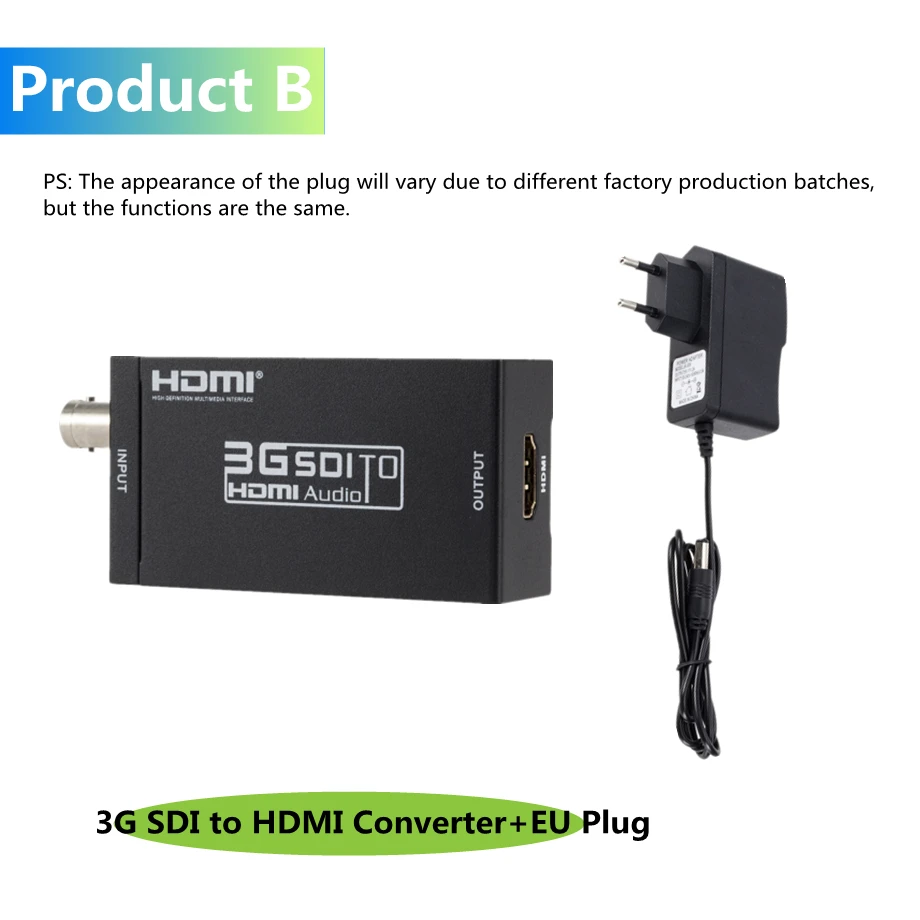

Package:

1* 3G SDI to HDMI Converter
1* EU/US DC Power cable (Optional, if you want UK and AU plugs, you can contact us first)
1* User Manual
