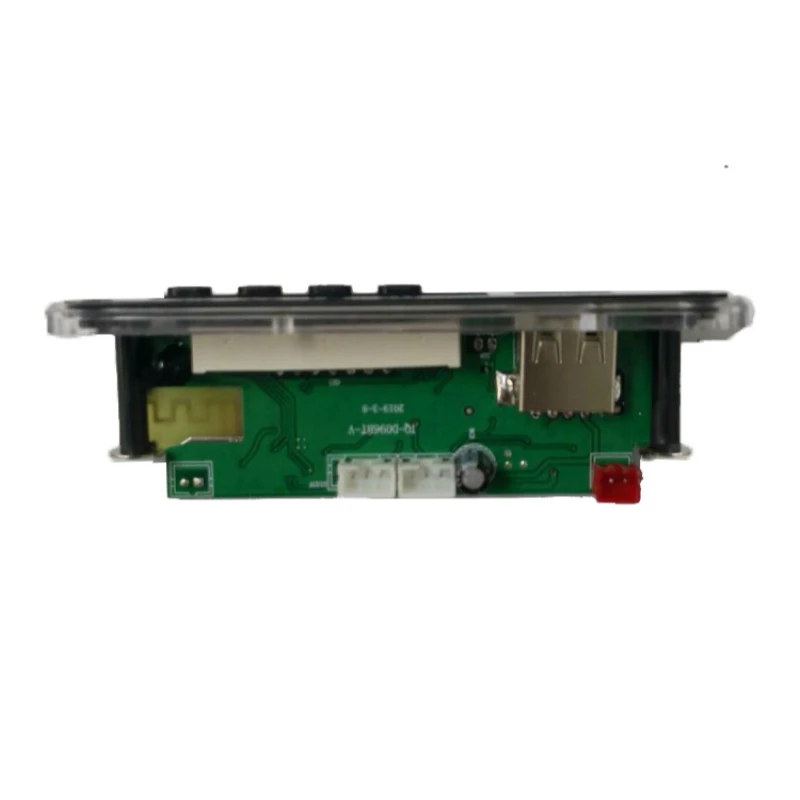

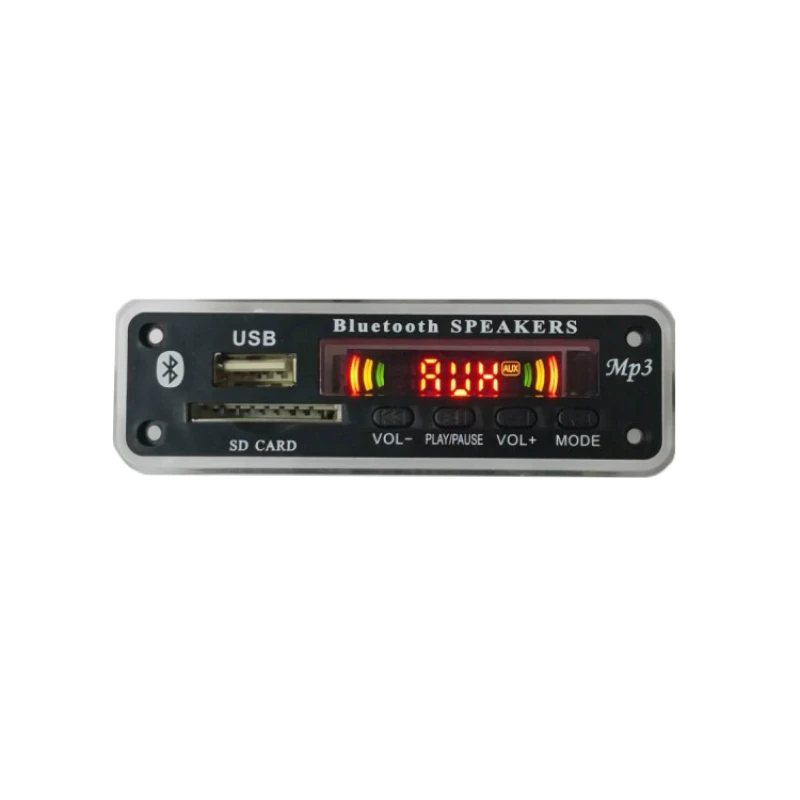

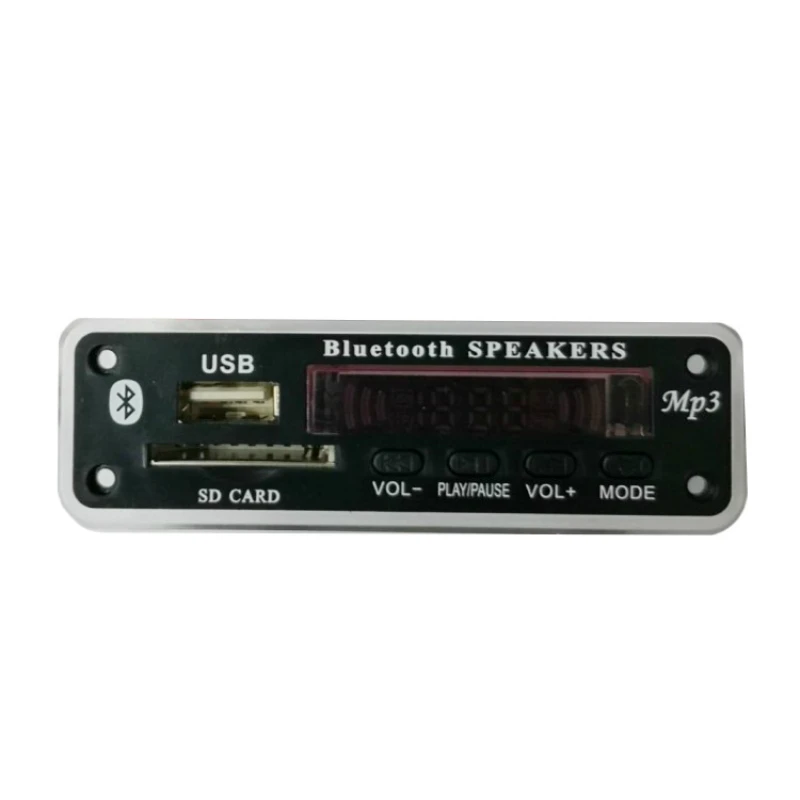

Car USB Bluetooth V5.0 MP3 Player Integrated 12V MP3 Decoder Board Module Remote Control USB FM Aux Radio

Specification:

Size: 93*30MM

Product power consumption: less than 150MA

Voltage: 12V

Module functions-audio, controllable players, household appliances, industrial applications

A simple audio system, simple operation and low price, suitable for the popular mid-range consumer market:

Transform and upgrade ordinary audio, so that the audio can easily play MP3/WMA format song files in the U disk SD card, improve the sound quality of ordinary audio, and obtain effective music at a low price;

Cooperate with the secondary development and application of other equipment, circuits and modules, which are used in toys, gifts, fitness equipment, household appliances, broadcasting systems, etc.

Easily realize Bluetooth-compatible wireless docking and listen to music as you like.

feature:

Support led digital tube;

Support USB, SD, AUX, FM radio functions;

Support Bluetooth-compatible with Bluetooth 3.0 and below;

Support previous song, next song, play/pause, mode conversion;

Support FAT16, FAT32 file system;

Support MP1 Layer3, MP2 Layer3, MP3 Layer3, song version;

Support 32-320kbps MP3 songs;

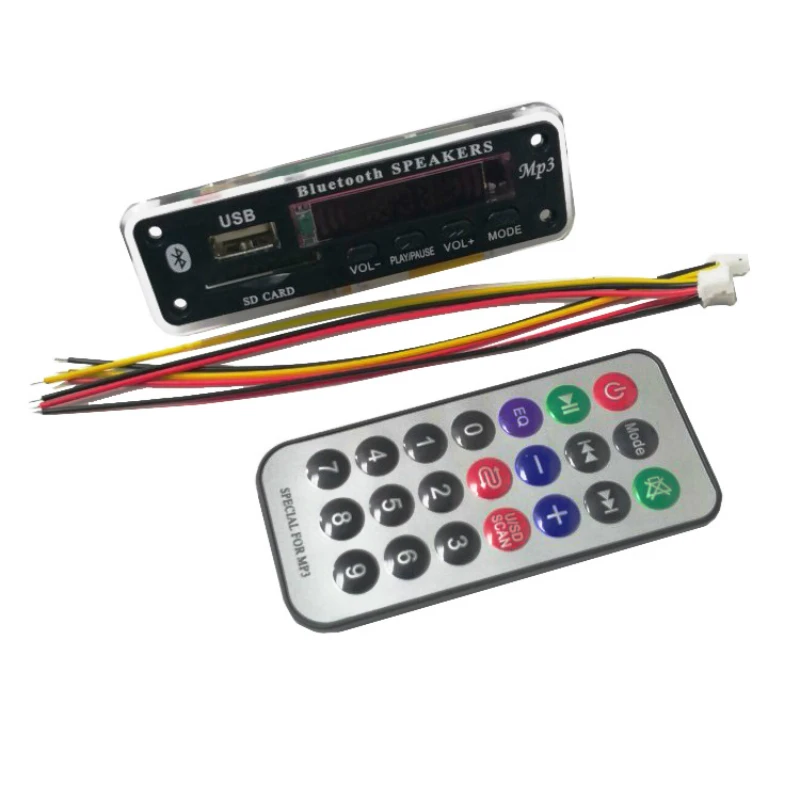

Support infrared remote control reception

The module contains MP3 song decoding chip;

Key operation instructions:

''PREV'': Short press the previous song in the USB/SD/Bluetooth-compatible state; short press the previous station in the FM state, press and hold the volume to decrease.

''PLAY/PAUSE'' short press to play/pause in the USB/SD/Bluetooth-compatible state, long press to automatically sweep the station in the FM state;

''NEXT'': Short press in the USB/SD/Bluetooth-compatible state; short press a station in the FM state and hold down the volume.

"MODE": When there is SD card and U disk: the switching sequence is USB→SD→Bluetooth-compatible→FM→AUX→USB; U disk only: the switching sequence is USB→Bluetooth-compatible→FM→AUX→USB; only SD card time: The switching sequence is SD→Bluetooth-compatible→FM→AUX→SD.
